Introduction

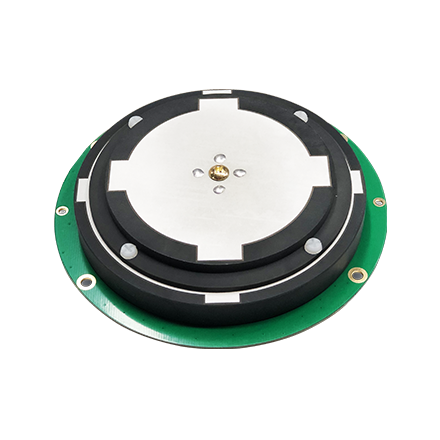

Harxon HX-CSX078A is a precision tuned, stacked patch GNSS antenna that provides reliable and consistent positioning services across the full bandwidth of the antenna. Its superior positioning accuracy and powerful system compatibility makes it ideal to be integrated into various surveying and RTK applications.

Key Features

Consistent Performance Across Full Frequency Bands

HX-CSX078A offers full support for superior satellite signals tracking, including GPS, GLONASS, Galileo and BeiDou, as well as L-Band correction services. It offers a very stable phase center variation with advanced multipoint feeding technology.
Great Multipath Rejection and Powerful Anti-Interference Capacity

HX-CSX078A equips an anti-multipath intercepter and provides superior multi-path signal rejection. Besides, the pre-filtered LNA restraints unwanted electromagnetic interferences and significantly avoids signal loss.
Easy Integration Design for Various Applications

The unique structure design simplifies RTK integration, and minimizes the overall device dimension, optimizing the positioning efficiency and performance of system integrators.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°(omni-directional)
Output VSWR	≤2.0
Peak Gain	5.5dBi

LNA Gain	40±2 dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤45mA
Group Delay Ripple	≤5ns
