Introduction

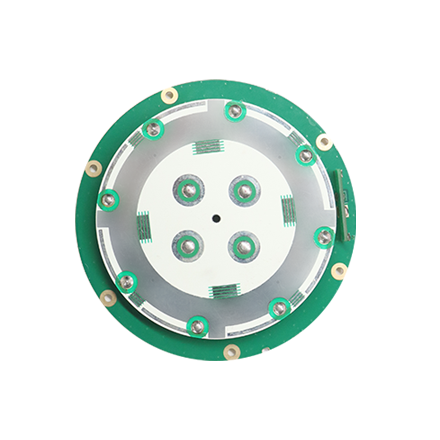

HX-SE408A is an embedded multi-constellation multi-frequency GNSS antenna that integrates a GNSS antenna and WiFi/Bluetooth antenna in one compact enclosure. This integration saves space, simplifies installation, and reduces maintenance complexity, making it ideal for space-constrained applications. It delivers high-precision positioning and reliable WiFi/Bluetooth connectivity with excellent anti-electromagnetic interference capabilities, ensuring robust performance in harsh environments. The combination of high-accuracy GNSS and high-speed WiFi/Bluetooth data transmission makes it perfect for applications requiring precise positioning, such as surveying and mapping, robotics, and other precision-dependent industries.

Key Features

Stable Phase Center for Robust Positioning Performance

HX-SE408A supports multi-constellation full frequency satellite signal tracking, including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS, and L-band. It features Harxon X-Survey™ technology that support multi-point feeding capability.
Highly Integrated Layout for Easy Integration

HX-SE408A integrates a GNSS antenna and WiFi/Bluetooth antenna within a compact enclosure, simplifying integration for diverse applications. The symmetrical balanced array effectively reduces interference, ensuring stable phase center and consistently reliable signal reception.
Tracking in Complex Environments

This antenna exhibits superior high gain performance with ultralow signal loss, ensuring reliable satellite signal tracking. It also delivers wide beam width that covers wide frequencies with high marginal gain.
Strong Anti-interference Performance

The advanced LNA excels in improved signal filtering and out-of-band rejection and restraints unwanted electromagnetic interferences, plus strong multi-path reduction capacity.

Parameters

Signal Received	GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤1dB (Typical)
Azimuth Coverage	360°

Frequency (4G Antenna)	2.4GHz-2.48GHz, 5.2GHz-5.85GHz
Nominal Impedance	50 Ω
Polarization	Linear Polarization
Output VSWR	≤2.5 (Typical)
Radiation Efficiency	≥50% (Typical)

LNA Gain	30±2dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤45mA
Differential Propagation Delay	≤5ns

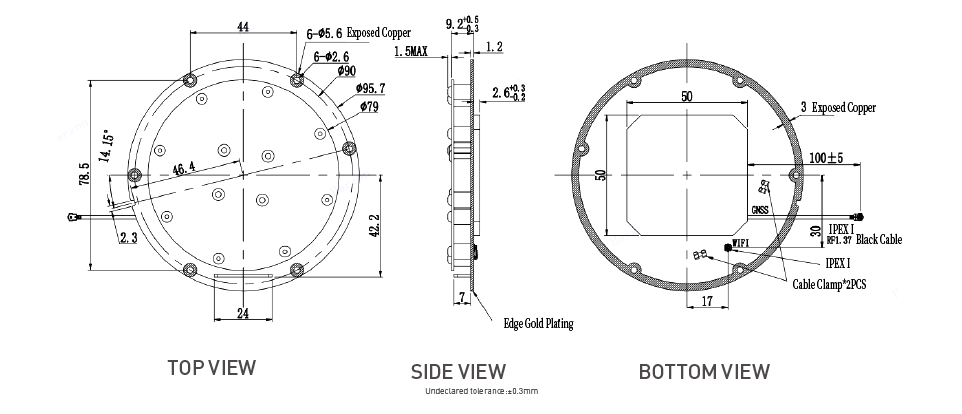

Dimensions	Φ95.7*13.3mm
Weight	≤130g
Connector	GNSS: RF1.37 Black Cable with IPEX First-Generation Female Connector WIFI: IPEX First-Generation Board-End Male JC Connector
Mounting	6*M2.5 Screws
