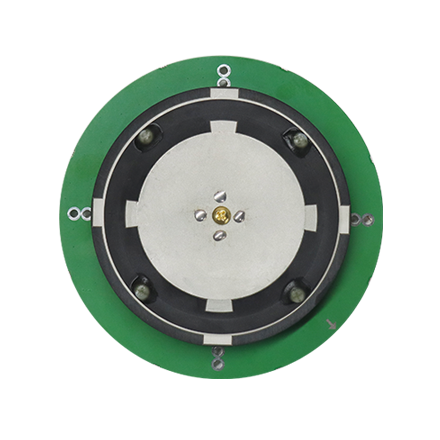

Survey GNSS Antenna HX-CSX349A
Harxon HX-CSX349A is a full-frequency-band GNSS surveying antenna supporting GPS, GLONASS, BDS and Galileo. It is designed for compatibility with a wide range of GNSS receivers, and features high gain, wide coverage, stable reception, refined structure and high environmental reliability. With reliable and consistent positioning performance, it is ideal for integration into various surveying and RTK applications.
Harxon HX-CSX349A is a full-frequency-band GNSS surveying antenna supporting GPS, GLONASS, BDS and Galileo. It is designed for compatibility with a wide range of GNSS receivers, and features high gain, wide coverage, stable reception, refined structure and high environmental reliability. With reliable and consistent positioning performance, it is ideal for integration into various surveying and RTK applications.
Harxon HX-CSX349A is a full-frequency-band GNSS surveying antenna supporting GPS, GLONASS, BDS and Galileo. It is designed for compatibility with a wide range of GNSS receivers, and features high gain, wide coverage, stable reception, refined structure and high environmental reliability. With reliable and consistent positioning performance, it is ideal for integration into various surveying and RTK applications.
Harxon HX-CSX349A is a full-frequency-band GNSS surveying antenna supporting GPS, GLONASS, BDS and Galileo. It is designed for compatibility with a wide range of GNSS receivers, and features high gain, wide coverage, stable reception, refined structure and high environmental reliability. With reliable and consistent positioning performance, it is ideal for integration into various surveying and RTK applications.
Harxon HX-CSX349A is a full-frequency-band GNSS surveying antenna supporting GPS, GLONASS, BDS and Galileo. It is designed for compatibility with a wide range of GNSS receivers, and features high gain, wide coverage, stable reception, refined structure and high environmental reliability. With reliable and consistent positioning performance, it is ideal for integration into various surveying and RTK applications.
| Signal Received |
GPS L1/L2/L5 BDS B1I/B2I/B3I/B1C/B2a/B2b GLONASS G1/G2/G3 GALILEO E1/E5a/E5b/E6 QZSS L1/L2/L5/L6 SBAS L1/L5 IRNSS L5 L-band |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Peak Gain | ≥5dBi |
| Phase Center Stability | ±2mm |
| LNA Gain |
L2: 36±2dB L1: 34±2dB |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Passband Ripple | ±2dB |
| Operation Voltage | +3.3 to +12VDC |
| Operation Current | ≤45mA |
| Group Delay Ripple | ≤5ns |
| Dimensions | Φ122*23.3mm |
| Weight | ≤250g |
| Connector | MMCX-JW |
| Mounting | 4 x M3 Screws |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +85℃ |
| Humidity | 95% non-condensing |
Survey Rover Station
Survey Base Station
Agriculture
Robot
