Construction

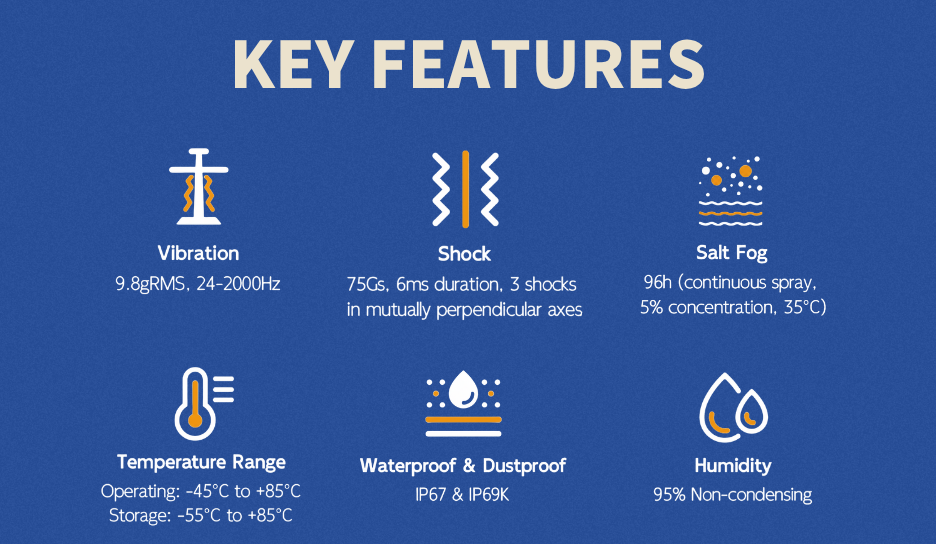

 • Millimeter-level positioning accuracy

 • Multi-frequency multi-constellation coverage

 • IP69K ruggedized enclosures for tough environments

 • Robust against heavy vibrations and bumps

 • Excellent multipath rejection for superior performance

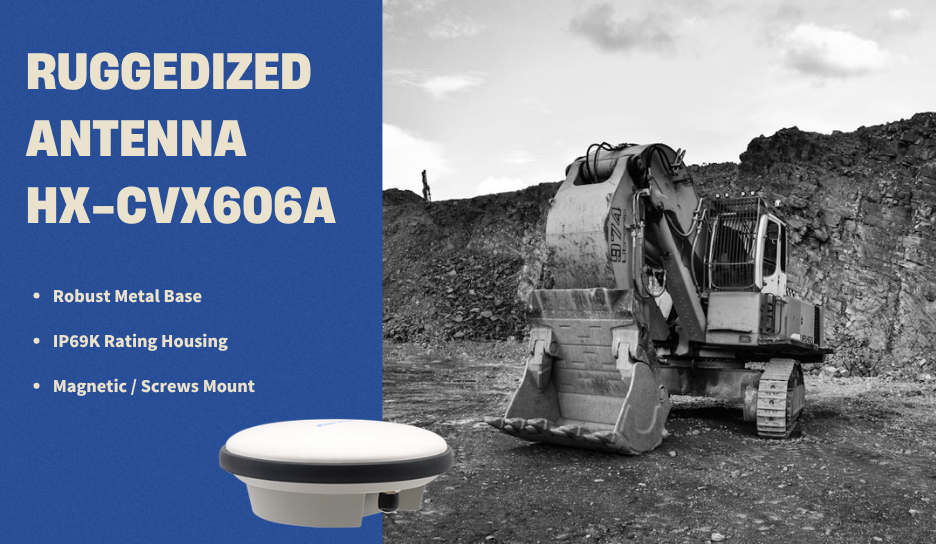

The ruggedized antenna HX-CVX606A is built into an IP69K-rated robust housing with a metal base, so it can withstand high shock and vibration. The antenna provides millimeter-level accuracy, strong anti-interference performance, and a stable phase center, making it ideal for GNSS-based machine control.

 • Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band

 • Peak Gain: 5.5dBi

 • Dimensions: ¢150×57.3mm

 • Weight: ≤800g

 • Connector: TNC-K

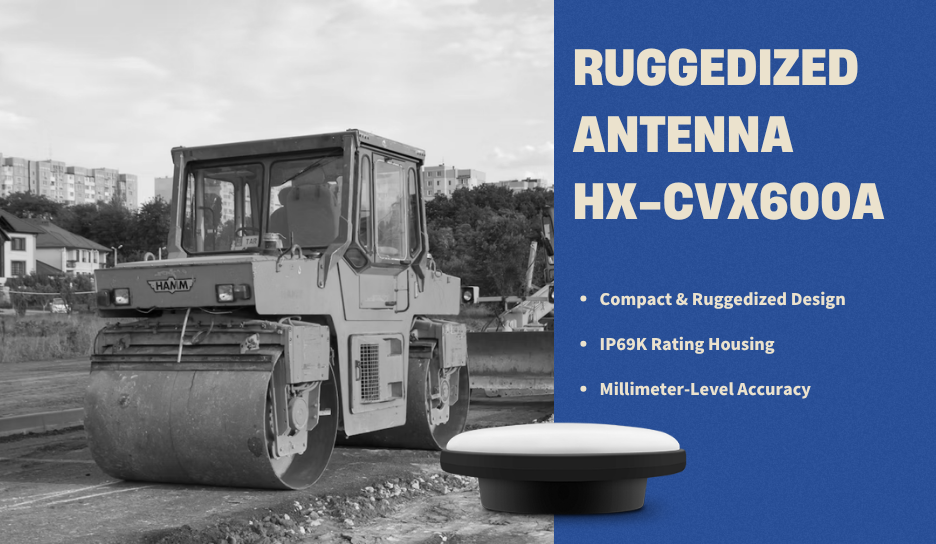

With IP69K rating rugged housing, waterproof and dustproof design, HX-CVX600A provides stable performance in high shock and vibration conditions. It is ideal for all surveying and I-construction machining applications.

 • Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band

 • Peak Gain: 5.5dBi

 • Dimensions:¢150×53mm

 • Weight: ≤650g

 • Connector: TNC-K

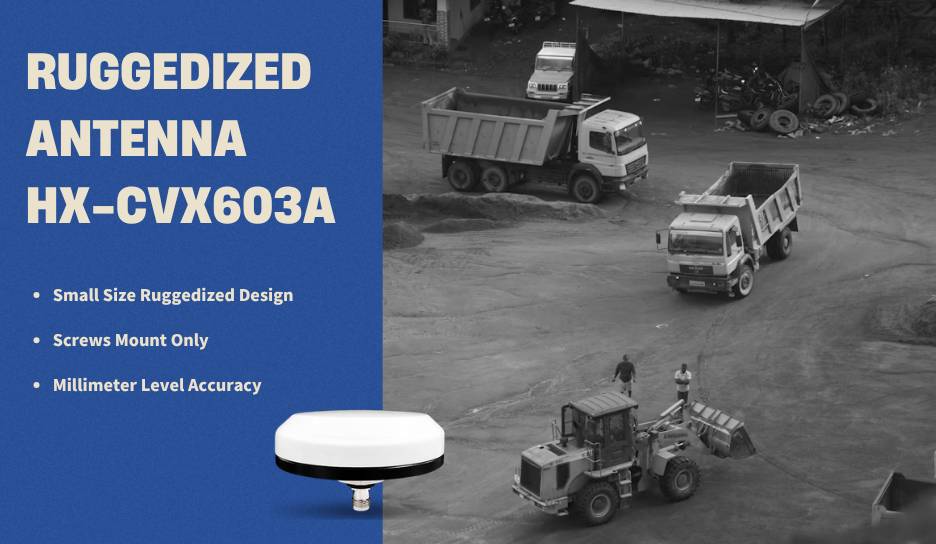

HX-CVX603A  adopts a compact design (Φ90.6×26mm) and a rugged IP67 rating housing, which is a small size option for survey and construction positioning applications. The small size and screw mounting design ensures easy integration.

 • Frequency:GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L3/L6, SBAS L1/L5, IRNSS L5, L-Band

 • Peak Gain: 4.0dBi

 • Dimensions: Φ90.6×26mm

 • Weight: ≤250g

 • Connector: TNC-K
