Introduction

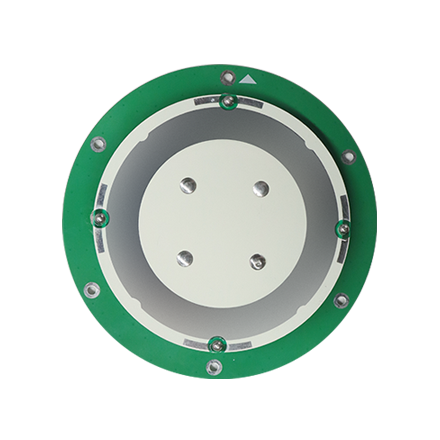

Harxon HX-SE406A is a high-performance, full-frequency GNSS antenna designed for robotic lawn mowers, delivering centimeter-level positioning accuracy at an affordable price. With high gain (peak 5dBi), stable phase center, and multi-constellation full-frequency support, it ensures reliable navigation in challenging mowing terrains. Its compact design and good electromagnetic compatibility simplify integration, while stable signal tracking performance and robust multipath rejection guarantee consistent performance, making it the ideal choice for precision-driven, cost-effective lawn care solutions.

Key Features

High Phase Center Stability

HX-SE406A offers full support for superior satellite signals tracking, including GPS, GLONASS, Galileo, BeiDou, delivering a peak gain of 5 dBi, wide beamwidth, and exceptional wide-angle circular polarization (WACP).
Strong Anti-Interference Performance

The HX-SE406A’s advanced Low Noise Amplifier (LNA) enhances GNSS signal integrity with superior amplification, exceptional out-of-band rejection, and robust noise suppression.
Compact and Reliable Antenna Structure

HX-SE406A has a compact Φ120×15.8 mm form factor and lightweight 100g design, using proprietary microwave materials and precision molding for low loss and enhanced structural stability.

Parameters

Performance
LNA
Mechaical
Environmental

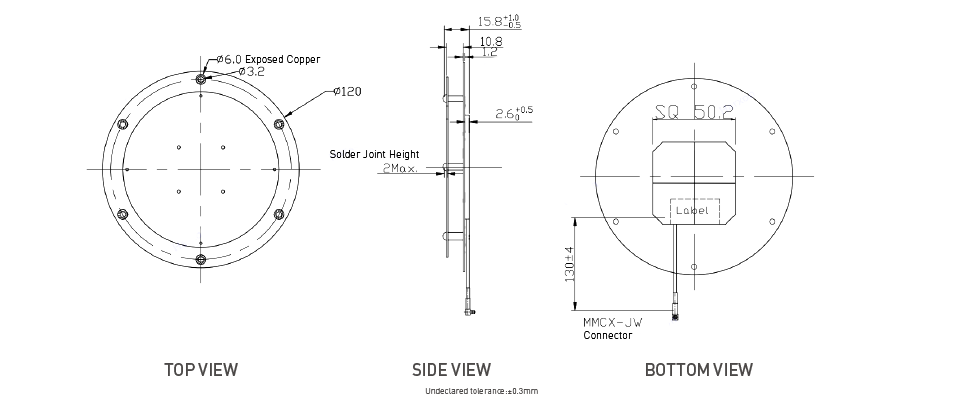

Drawing

Signal Received	GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°
Output VSWR	≤1.9
Peak Gain	5.0dBi
Phase Center Height	L2: 9.5mm L1: 8.5mm
Phase Center Error	±2mm

LNA Gain	L2: 30±2db L1: 30±2db
Noise Figure	≤1.8dB
Output VSWR	≤1.9
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤27mA
Differential Propagation Delay	≤5ns
