Introduction

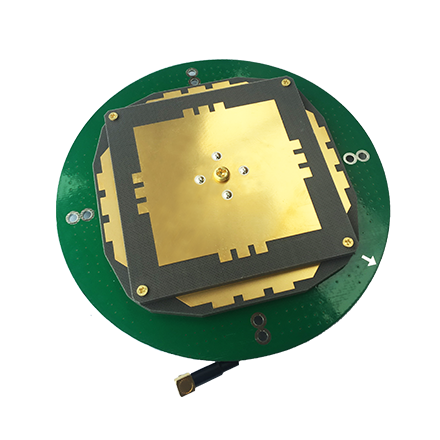

HX-CS7017A has passed IGS phase center certification. This survey antenna has exceptional pattern control, polarization purity and high efficiency in a very compact form factor. Antenna element has high gain and wide beam width to ensure the signal receiving performance of satellite at low elevation angle.

Key Features

Consistent Performance Across Full Frequency Bands

HX-CS7017A offers full support for superior satellite signals tracking, including GPS, GLONASS and BeiDou, as well as L-Band correction services. It offers a very stable phase center variation with advanced multipoint feeding technology.
Great Multipath Rejection and Powerful Anti-Interference Capacity

HX-CS7017A equips an anti-multipath intercepter and provides superior multi-path signal rejection. Besides, the pre-filtered LNA restraints unwanted electromagnetic interferences and significantly avoids signal loss.
Easy Integration Design for Various Applications

The unique structure design simplifies RTK integration, and minimizes the overall device dimension, optimizing the positioning efficiency and performance of system integrators.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2 GLONASS L1/L2 BDS B1/B2/B3
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°(omni-directional)
Output VSWR	≤2.0
Peak Gain	5.5dBi
Phase Center Error	±2mm

LNA Gain	40±2 dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤45mA
Group Delay Ripple	≤5ns
