Introduction

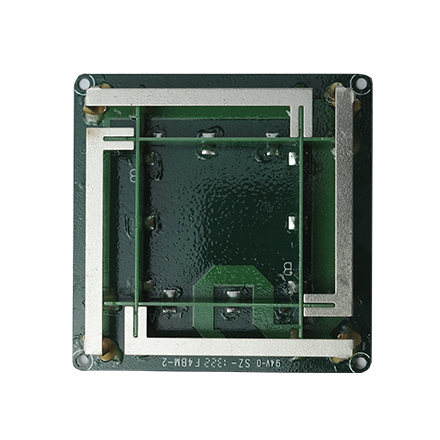

UHF_ANT-15-2_V3_JL01 is a compact UHF RFID antenna designed for 902–928 MHz RFID reader applications. Featuring RHCP polarization, low axial ratio, stable gain performance and an MMCX connector, it provides reliable RFID signal transmission and reception for inventory management, asset tracking, logistics and industrial identification systems.

Key Features

Reliable UHF RFID Communication Performance

UHF_ANT-15-2_V3_JL01 operates at 902–928 MHz with a center frequency of 915 MHz, providing stable RF performance for UHF RFID reader and identification applications
RHCP Polarization with Low Axial Ratio

The antenna adopts RHCP polarization with an axial ratio of ≤2.0 dB at zenith, helping improve RFID communication reliability and signal stability
Compact and Flexible Integration

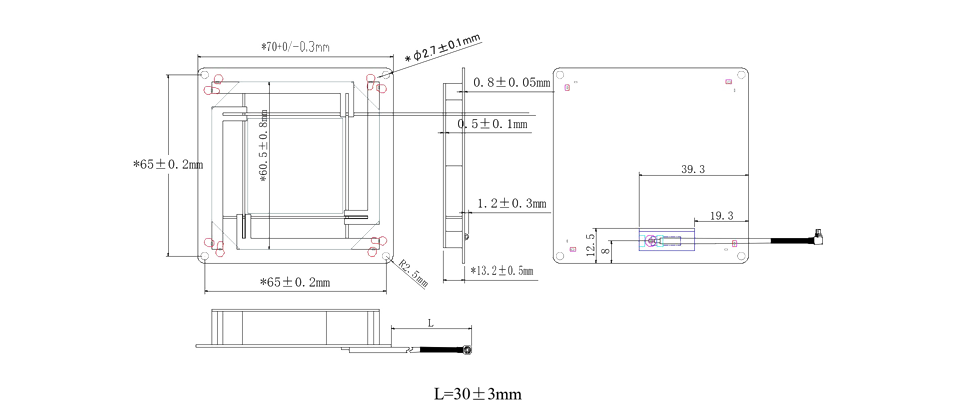

Equipped with an MMCX-JW3 connector, RF1.13 mm cable and compact structure, the antenna enables convenient integration into RFID readers, modules and embedded systems
Durable Design for Industrial Applications

Featuring a sheet iron antenna structure, high-frequency PCB and an operating temperature range from -40°C to +85°C, the antenna supports reliable operation in various environments
