Introduction

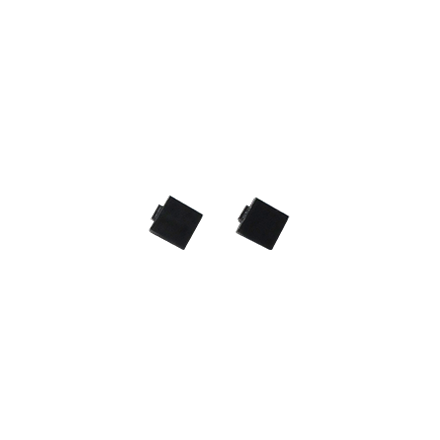

TAC915X0505H3NB_MT050503-920 is a compact UHF RFID ceramic tag antenna integrated with an Alien H3 RFID chip. Operating at 915 MHz with EPC/ISO18000-6C protocol support, it features a compact 5 × 5 × 3 mm design, ceramic substrate and linear polarization, providing reliable identification and tracking performance for asset management, logistics, warehousing and industrial RFID applications.

Key Features

Integrated RFID Tag Solution

TAC915X0505H3NB_MT050503-920 integrates a ceramic antenna and Alien H3 RFID chip into a compact RFID tag solution, simplifying system integration for identification applications
Reliable UHF RFID Performance

Operating at 902–928 MHz with EPC/ISO 18000-6C protocol support, the tag antenna provides reliable RFID communication performance with a Tagformance reading distance of 1.5 m
Compact Ceramic Structure

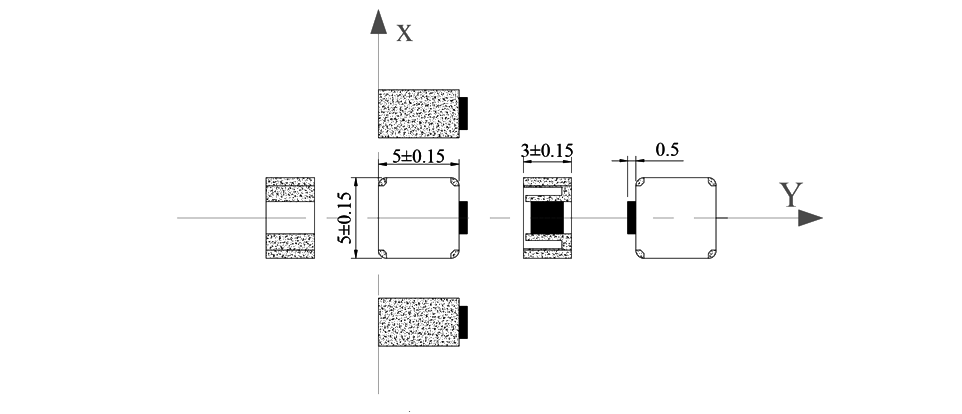

The antenna adopts a compact 5 × 5 × 3 mm ceramic structure with a silver-plated antenna surface and dielectric ceramic substrate, enabling miniaturized RFID tag designs
Stable and Durable Design

Featuring linear polarization, a low frequency temperature coefficient and reliability testing under high- and low-temperature conditions, the antenna supports stable operation across various application environments
