Communication Antenna

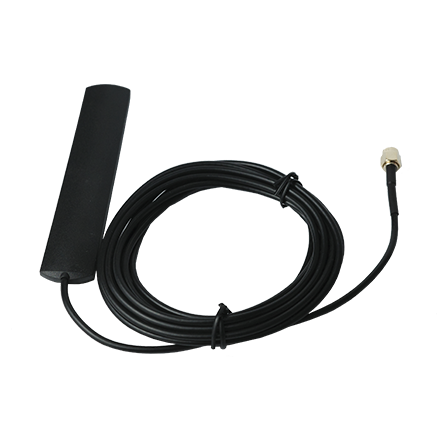

External Cellular Antenna LTE_PM900WT1_J3M

Inquiry
LTE-PM900WT1

Introduction

LTE_PM900WT1_J3M is a wideband cellular antenna designed for GSM, UMTS and LTE wireless communication applications. Covering multiple frequency bands from 820 MHz to 2700 MHz, it features omni-directional radiation, linear polarization, SMA connector and 3 m LMR100 cable, providing stable wireless connectivity for terminals, gateways, IoT devices and industrial applications.



Key Features

  • Wide Frequency Coverage

    LTE_PM900WT1_J3M supports GSM 900, GSM 1800, GSM 1900, UMTS and LTE 2600 frequency bands, providing a flexible wireless solution for various communication systems

  • Stable RF Performance

    The antenna features 50 Ω impedance, omnidirectional radiation and linear polarization, with typical gain of up to 2 dBi across the 1800 MHz, 1900 MHz, 2000 MHz and 2600 MHz bands

  • Flexible Cable and Connector Design

    Equipped with a 3 m LMR100 RF cable and SMA-J connector, the antenna enables convenient installation and reliable connection to wireless terminals and equipment

  • Durable Mechanical Design

    Featuring a plastic enclosure, adhesive mounting structure and a wide operating temperature range from -45°C to +85°C, the antenna supports reliable deployment in demanding environments

Parameters

LTE_PM900WT1_J3M
Frequency

GSM 900: 820–960 MHz; GSM 1800: 1710–1880 MHz; GSM 1900: 1850–1990 MHz;

UMTS: 1900–2170 MHz; LTE: 2500–2700 MHz
Nominal Impedance 50Ω
Polarization Linear Polarization
Peak Gain 1 dBi @900 MHz; 2 dBi @1800 MHz; 2 dBi @1900 MHz; 2 dBi @2000 MHz; 2 dBi @2600 MHz

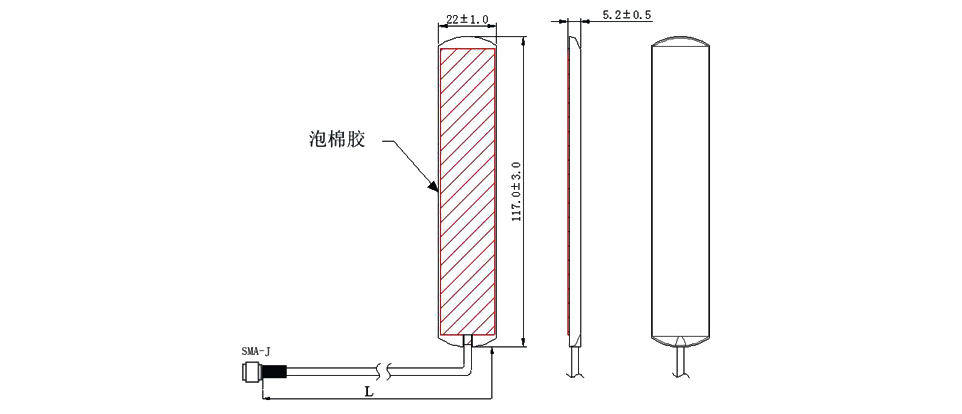

Dimensions 117*21.5*4.5
Weight N/A
Connector
SMA-J
Mounting Adhesive Type



Operating Temperature -45℃ to +80℃
Storage Temperature -45℃ to +85℃



Applications

passenger-vehicle

Passenger Vehicle

commercial-vehicle

Commercial Vehicle

fleet-management

Fleet Management

vehicle 1

Vehicle
