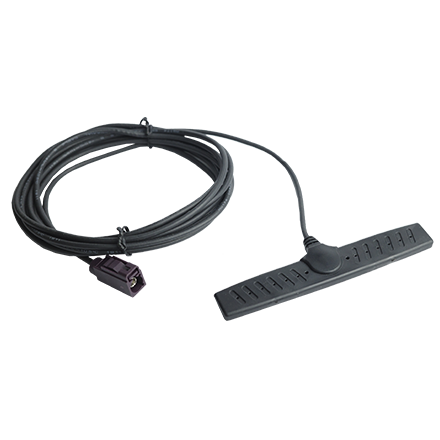

External Cellular Antenna LTE_PM900U11V5.0_K3M
LTE_PM900U11V5.0_K3M is a cellular antenna designed for reliable 2G, 3G and 4G wireless communication applications. Covering 824–960 MHz, 1710–2170 MHz and 2300–2690 MHz bands, it features linear polarization, omni-directional radiation, 3 m RG174 cable and FAKRA-D connector for flexible installation in vehicle and terminal devices.
LTE_PM900U11V5.0_K3M supports 824–960 MHz, 1710–2170 MHz and 2300–2690 MHz frequency ranges, making it suitable for 2G, 3G and 4G wireless communication applications
The antenna delivers typical peak gain of 2.9 dBi, 5.4 dBi and 6.0 dBi across its supported frequency bands, with efficiency higher than 65%, 70% and 55% respectively, supporting stable cellular connectivity
With omni-directional radiation and linear polarization, the antenna is designed to provide broad signal coverage and reliable reception in practical installation environments
Equipped with a 3000±100 mm RG174 cable, FAKRA-D connector and surface-pasting mounting, the antenna supports convenient installation for vehicle, IoT and intelligent terminal applications
| Frequency | 824–960 MHz; 1710–2170 MHz; 2300–2690 MHz |
| Nominal Impedance | 50Ω |
| Polarization | Linear Polarization |
| Peak Gain |
|

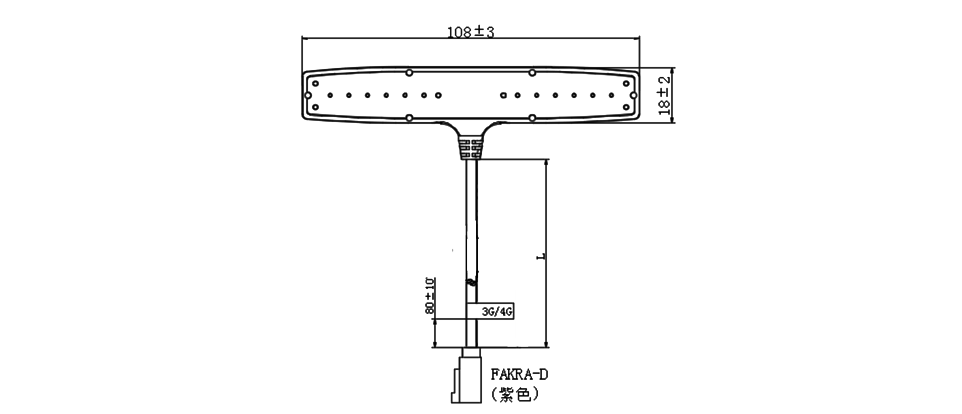

| Dimensions | 108±3 × 18±2 mm; thickness 4.2 mm typ. |
| Weight | N/A |
| Connector |
|
| Mounting | Surface pasting |
| Operating Temperature | -45℃ to +80℃ |
| Storage Temperature | -45℃ to +85℃ |
Passenger Vehicle
Commercial Vehicle
Fleet Management
Vehicle
