Introduction

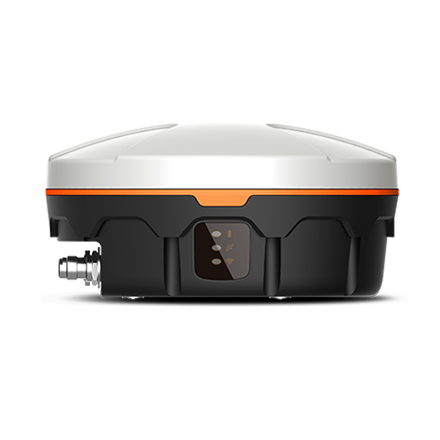

TS100 Base Series is a multi-GNSS compatible system using GPS, GLONASS, BeiDou, Galileo, for simultaneous satellite tracking to offer RTK positioning. It is able to track any visible satellites under challenging conditions, and outputs reliable correction data even if there are obstructions around the farmland.

Key Features

Multi-Constellation for Advanced Positioning

TS100 Base Series is a multi-GNSS compatible system using GPS, GLONASS, BeiDou, Galileo, for simultaneous satellite tracking to offer RTK positioning
High Precision GNSS Survey Antenna

TS100 Base Series is embedded with Harxon’s multi-frequency GNSS survey antenna which features a multi-point feeding design to achieve greater phase center stability
Stable and Reliable Correction Data Transmission

The build-in GNSS module supports multi-frequency signal reception with advanced multi-path resistance technology, therefore provides stable and reliable correction data transmission
Correction Data Links Selectable

The Bluetooth, built-in/external radio transmission modems are designed as multiple selections as required
Multiple Installation Options

TS100 Base Series supports mounting options of built-in magnet, fixed mounting as well as 5/8-inch screws and M4 screws

Parameters

Signal Received	GPS L1/L2/L5 GLONASS L1/L2 BDS B1/B2/B3 GALILEO E1/E5a/E5b
Horizontal Position Accuracy (RMS)	Single point 1.5m
Data Rate	10Hz
Maximum Correction Data Rate	1Hz
Time to First Fix	Cold Start<50s
Measurement Precision(RMS)	See brochure

Dimensions	160 diameter x 80 height (mm)
Weight	<950g
Connector	10pin female
Mounting	3xmagnet mountings 4xM4 screw inserts 1x5/8-inch screw insert
Power	Input Voltage Range +9VDC to +30VDC Power Consumption<8.5W
Status LEDs	Power RTK Status Correction Data Link

Operating Temperature	-40℃ to +70℃
Storage Temperature	-55°C to +85°C
Humidity	95% non-condensing
Vibration	GJB150.16-2009, MIL-STD-810
Compliance	CE, FCC, REACH, RoHS
Waterproof Rating	IP67
