Introduction

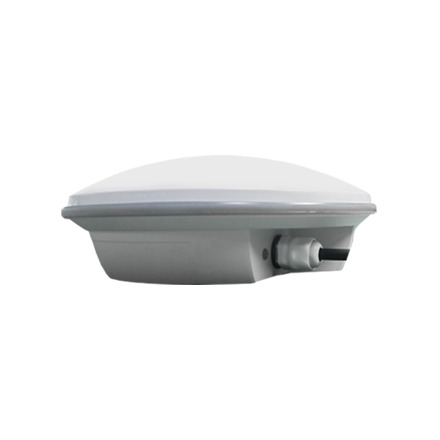

Harxon introduces the HX-TS122 EUAA Smart Antenna, designed for demanding precision agriculture applications where GNSS availability, accuracy, and reliability are critical. For high-performance semi-autonomous and autonomous agricultural machinery requiring centimeter-level positioning—even across highly variable terrain and GNSS-challenged environments—the TS122 EUAA delivers ±10 cm pass-to-pass accuracy with STANDALONE technology, helping maintain consistent positioning performance during field operations. Featuring a compact, low-profile design, the HX-TS122 EUAA integrates easily into agricultural machinery. Its rugged IP67-rated housing provides reliable protection against dust, rain, splashes, and prolonged outdoor exposure, making it well suited for demanding agricultural environments.

Dual-Band Multi-Constellation GNSS Support
STEADYLINE Smooth Positioning Technology Reducing Position Jumps
STANDALONE Technology Delivers Centimeter-Level Positioning
IP67 Rugged Housing with Bluetooth, RS-232 and Flexible Installation

Key Features

Comprehensive GNSS Support

Supporting dual-frequency, multi-constellation signals from GPS, GLONASS, GALILEO and BEIDOU, TS122 EUAA provides positioning output at up to 10Hz, helping agricultural machinery maintain stable and responsive positioning performance across changing field conditions.
STANDALONE Technology

With STANDALONE technology, TS122 EUAA can achieve centimeter-level positioning without external correction support by utilizing receiver navigation data and advanced estimation algorithms to reduce errors from satellite orbit, clocks, ionosphere and troposphere, simplifying high-precision agricultural applications.
SLIDE Positioning Technology

Adopting Harxon’s patented SLIDE smooth positioning technology, TS122 EUAA maintains stable and continuous positioning output during poor satellite tracking or short-term signal interruptions, helping agricultural machinery achieve smoother steering, straighter rows and more consistent field operations.
Terrain Compensation for Maximum Accuracy

Built-in terrain compensation corrects positioning deviations caused by vehicle roll and pitch when operating on uneven ground or slopes, helping agricultural machinery maintain more accurate guidance and improve operational efficiency across challenging and variable terrain.
Rich Interfaces for Flexible Connectivity

Equipped with two RS-232 serial ports and Bluetooth connectivity, TS122 EUAA supports convenient configuration through smartphones or tablets while also enabling wireless transmission of correction data from compatible external devices to the smart antenna.
Rugged and Durable Design, Flexible Installations Available

Featuring a compact, low-profile structure and IP67-rated housing, TS122 EUAA is designed for demanding outdoor environments. Three mounting options—M5 screw, magnetic and 5/8"-11 pole mounting—provide flexible integration across different agricultural machinery platforms.

Parameters

Performance
Connectivity
Mechaical
Environmental

Signal Received	GPS L1/L2/L5 GLONASS L1/L2 BDS B1/B2 GALILEO E1/E5b
Accuracy	Single Point 1.5m RMS PASS TO PASS 15cm RMS
Output Frequency	10 Hz
Time to First Fix	Cold Start < 50s
Standard Features	10Hz Data Transfer Rate Field Upgradeable Software Navigation Output Support for NMEA0183 SLIDE Smoothing Algorithms

Standard Features	10Hz Data Transfer Rate
	Field Upgradeable Software
	Navigation Output Support for NMEA0183
	SLIDE Smoothing Algorithms

Dimensions	φ152xH57.7mm
Weight	<500g
Connector	M12 8PIN Connector
Mounting	3*M5 Screws Mount Magnetic Mount BSW5/8''-11 Screw Mount
Accessories	Data Cable*1pc (Alternative)
Power	Input Voltage Range +9VDC to +36VDC Power Consumption 2.5W (Typical)
Status LEDs	Power RTK Status
