Introduction

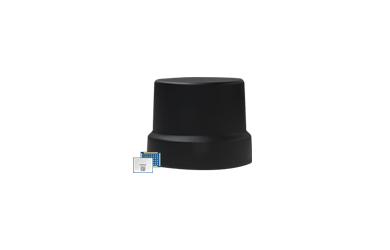

HX-MR401A is a housed multi-band multi-constellation smart antenna developed by Harxon. Combining Harxon’s world’s leading antenna technology with Unicore’s full-constellation full-frequency RTK positioning module UM980, HX-MR401A delivers precise positioning performance in a compact and integration-ready structure. it’s able to provide single point meter level accuracy, DGPS sub-meter level and RTK centimeter/millimeter level accuracy, very suited for various robotic lawn mower and unmanned aerial vehicle (UAV) applications

Smart Helix Antenna Integrated with RTK Module UM980
Full-band Multi-constellation GNSS Support
Small size and light weight (only ≤40g)
RTK Accuracy: Horizontal: 0.8cm+1ppm, Vertical: 1.5cm+1ppm
DGPS Accuracy: Horizontal: 0.4m, Vertical: 0.8m
Single Point Accuracy: Horizontal: 1.5m, Vertical: 2.5m

Key Features

Integrated Design and Compact Form Factor

The compact smart antenna with IP67 rated enclosure , weighing ≤40g and measuring Φ48*H38mm, greatly reduces the weight of UAVs and features low power consumption.Additionally, the GNSS antenna and module are well compatible with each other, simplifying the development process .
Precision-Tuned OEM GNSS Antenna

HX-MR401A is integrated with Unicore’s full-constellation full-frequency RTK positioning module UM980, which integrates RF, baseband and high precision algorithm. The antenna provides excellent axial ratios, enables excellent multipath mitigation and a very precise phase center.
High Performance RTK Positioning Module

Integrated with Unicore’s full-constellation full-frequency RTK positioning module UM980, which integrates RF, baseband and high precision algorithm, it can track multiple frequencies of all GNSS systems, enabling high-precision RTK positioning.
Strong Anti-Interference Performance

HX-MR401A is capable of offering superior positioning performance in challenging environments. The antenna equips a robust pre-filtered LNA that features an excellent out-of-band interference rejection performance, and the module features 60 dB narrowband anti-jamming.

Parameters

Performance
LNA
Mechaical
Environmental

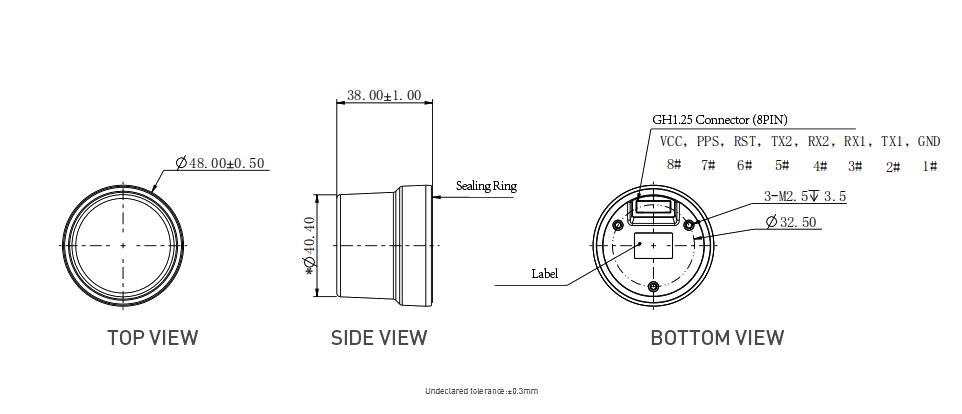

Drawing

Signal Received	GPS L1C/A, L2C, L2P(Y), L5 GLONASS G1, G2 BDS B1I, B2I, B3I, B1C, B2a GALILEO E1, E5a, E5b, E6 SBAS L1C/A QZSS L1C/A, L2C, L5
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio (@Zenith)	≤3dB
Azimuth Coverage	360°
Peak Gain	2.8dBi
RTK Connection
Positioning Module	UM980
Single Point Accuracy	Horizontal: 1.5m Vertical: 2.5m
DGPS Accuracy	Horizontal: 0.4m Vertical: 0.8m
RTK Accuracy	Horizontal: 0.8cm+1ppm Vertical: 1.5cm+1ppm

LNA Gain	23±2dB
Noise Figure	≤2dB
Output VSWR	≤2
Passband Ripple	±2dB

Dimensions	Φ48*H38mm (Shield cover and connectors not included)
Connector	GH1.25-8P
Weight	≤40g
Mounting	3 x M2.5 Screws
Interface Pin Order	1：GND 2：TX1 3：RX1 4：RX2 5：TX2 6：RST 7: PPS 8: VCC
