Introduction

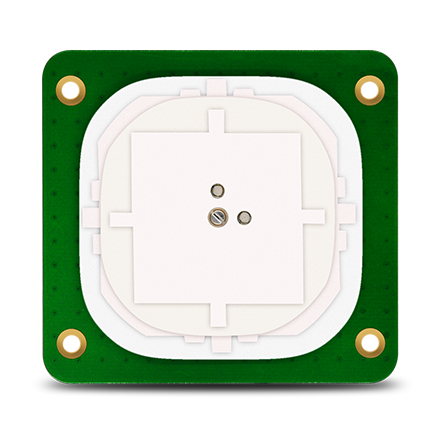

Harxon HX-CH4013A is super compact, light with high precision capability, adopting multi feed design to ensure the superposition of phase center and geometrical center, and minimize the influence measurement error. In addition, high gain and wide beam width ensure the signal receiving performance of satellite at low elevation angle.

Key Features

Reliable and Consistent Signal Tracking

HX-CH4013A is capable of receiving signals from GPS and GLONASS. It offers a very stable phase center variation with advanced multipoint feeding technology
Small Size, Light Weight and Low Power Consumption

HX-CH4013A is ideal for UAV applications due to its compact and light weight design, with dimensions 75*70*12.8mm and weight 60g. Its cables and connectors are customizable
Strong Anti-interference Performance

HX-CH4013A equips a robust pre-filtered LNA to minimize de-sensing from high level out-of-band signals, and restraints possible electromagnetic interferences
