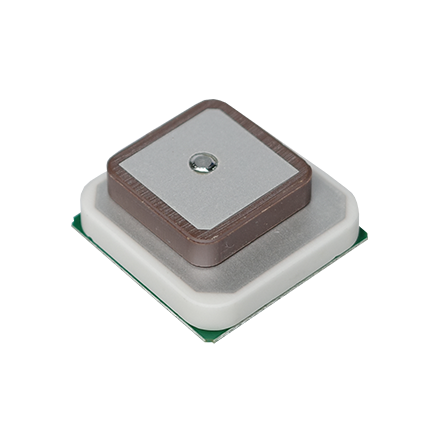

Dual Band Active GNSS Antenna DAML1L5CA2NO_P69MM
DAML1L5CA2NO_P69MM is a compact dual-band active GNSS antenna designed for GPS L1 and L5 signal reception. With integrated LNA, RHCP polarization, MHF-1 connector and 69 mm RF cable, it delivers reliable signal enhancement and flexible integration for compact positioning modules and terminal devices.
DAML1L5CA2NO_P69MM supports GPS L1 and L5 bands, enabling reliable dual-frequency GNSS signal reception for positioning and navigation applications.
The antenna integrates an LNA with 11±3 dB gain at 1176 MHz and 18±3 dB gain at 1575 MHz, helping improve received signal strength while maintaining stable output performance

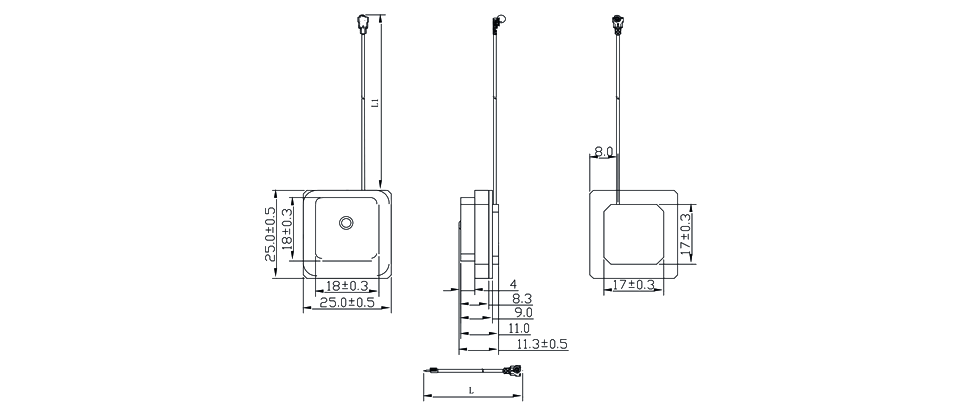

With 25 × 25 × 4 mm and 18 × 18 × 4 mm ceramic antenna elements, plus a 69±3 mm RF cable and MHF-1 connector, the antenna supports convenient integration into compact GNSS devices
The antenna features RHCP polarization, 50 Ω impedance, VSWR ≤2.0, noise figure ≤2.0 dB, and an operating temperature range of -40℃ to +85℃, supporting stable performance across practical application environments
| Frequency | GPS L5: 1176.45 MHz; GPS L1: 1575.42 MHz |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Peak Gain |
＞-0.5 dBic @1176.45 MHz; ＞2.0 dBic @1575.42 MHz, at Zenith Max |
| LNA Gain |
11±3 dB @1176 MHz; 18±3 dB @1575 MHz |
| Noise Figure | ≤2.0 dB |
| Output VSWR | ≤2 |
| Dimensions | GPS L5: 25 × 25 × 4 mm; GPS L1: 18 × 18 × 4 mm |
| Weight | N/A |
| Connector | MHF-1 |
| Mounting | Embedded / PCB integration |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +85℃ |
