Introduction

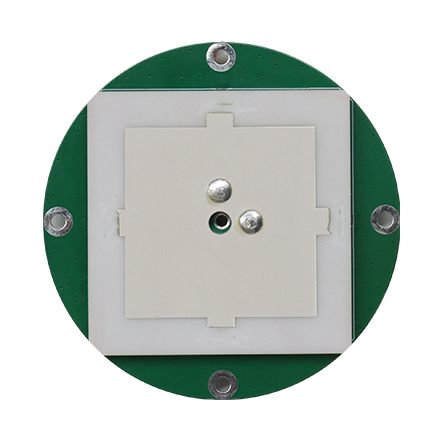

HX-CE101A is an OEM GNSS ceramic antenna that supports Beidou B1, Galileo E1, GPS L1, GLONASS L1. With its high gain, compact size, and precision-tuned stacked patch design, it delivers reliable GNSS positioning for dynamic applications such as UAVs and autonomous vehicles. The antenna features excellent axial ratio and superior multipath signal rejection, making it perfect for precision agriculture, industrial, construction safety, and security OEM applications.

Key Features

Stable Phase Center for Robust Positioning Performance

HX-CE101A offers reliable satellite signals tracking covering Beidou B1, Galileo E1, GPS L1, GLONASS L1. It provides a very stable phase center variation with advanced multipoint feeding technology
Low Profile, Easy for Integration

HX-CE101A has a compact dimension of φ56*10.6mm, weighing ≤50g for low power consumption. The structure design simplifies the integration and minimizes the overall machine dimension, bringing optimized positioning performance for system integrators
Tracking in Complex Environments

The ability to receive low elevation signals with high gain and wide beam width makes HX-CE101A an excellent choice for tracking visible satellites under challenging conditions, providing positioning solutions with precision and reliable data

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Frequency	GPS L1 GLONASS L1 GALILEO E1 BDS B1 QZSS L1
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	<3dB
VSWR	≤2.0
Gain at Zenith	4.5 dB (Based on φ100mm Ground Plane)
