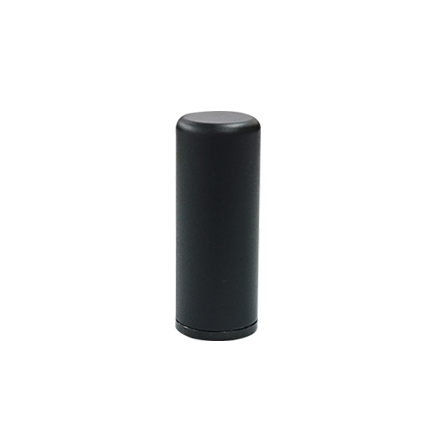

Ultra-Compact and Light Single-Band Helix Antenna

Key Features

• Small Form Factor, Lightweight, Designed for Integration

  Weighing just 11 g and measuring Φ14.9 × 38.5 mm, the HX-HR101A is designed for compact UAVs, handheld devices, and portable positioning platforms. Its lightweight construction and small footprint simplify integration where installation space and payload weight are limited.

• Consistent Performance across Full Frequency Bands

  The HX-HR101A supports GPS L1, GLONASS L1, BeiDou B1, Galileo E1, QZSS L1, and SBAS L1, enabling reception from multiple GNSS constellations. This broad satellite compatibility supports reliable signal reception for UAV navigation, GIS surveying, and handheld positioning applications.

• Advanced D-QHA Technology for Consistent Performance

  Harxon’s patented D-QHA technology provides wide-angle circular polarization while maintaining minimal phase center variation. This antenna design supports consistent GNSS reception across a wide range of satellite angles, helping meet the demands of precision positioning on compact platforms.

• Tracking in Challenging Environments

  The HX-HR101A features a wide radiation beam that supports reception of satellite signals at low elevation angles. Its broad angular coverage helps track visible satellites in challenging environments, including near buildings and beneath tree canopies, supporting UAV and portable GNSS applications.
