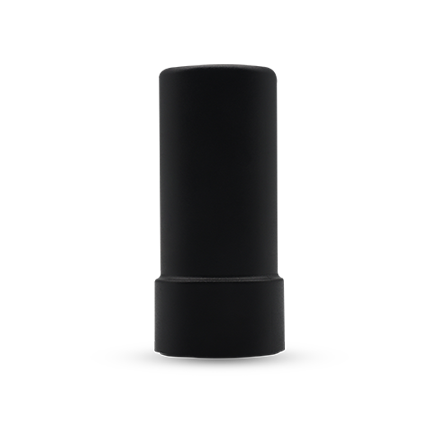

UAV Antenna HX-CH6601A
Harxon HX-CH6601A is a high performance GNSS antenna designed for high precision positioning service and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO and BeiDou. Its RTK level positioning accuracy makes it ideal to be integrated into application as surveying and mapping, and various UAVs operations.
Harxon’s D-QHA technology ensures HX-CH6601A more stable performance of wide-angle circular polarization (WACP), and smaller antenna phase center deviation (PCV).
HX-CH6601A is able to track visible satellites under challenging conditions, providing the positioning solutions with high precision and reliable data.
The antenna LNA features excellent out-of-band rejection performance, which can suppress the interference of magnetic disturbance, providing the stability and reliability of GNSS signals.
The light weight and small size HX-CH6601A can lighten the loads of UAVs, as well as a standard SMA male connector for easy integration. Its IP67 ruggedized design can protect it from dust and water.
| Signal Received | GPS L1/L2 GLONASS L1/L2 GALILEO E1 BDS B1/B2 QZSS L1/L2 SBAS L1 |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Gain RHCP(maximum) | 1217-1257MHz 2dBi(maximum) 1559-1610MHz 2.5dBi(maximum) |
| LNA Gain | 33dB(typical) |
| Noise Figure | ≤1.5dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | +3.3 to +12VDC |
| Operation Current | 55mA(maximum) |
| Group Delay Ripple | ＜15n |
| Dimensions | ¢27.5*59mm |
| Connector | SMA male |
| Weight | ≤25g |
| Mounting | customers design own installation) |
| Operating Temperature | -40℃ to +70℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 95% non-condensing |
| Water/Dust Resistance | IP67 |
| Regulatory Compliance | CE, RoHS, REACH |
