Introduction

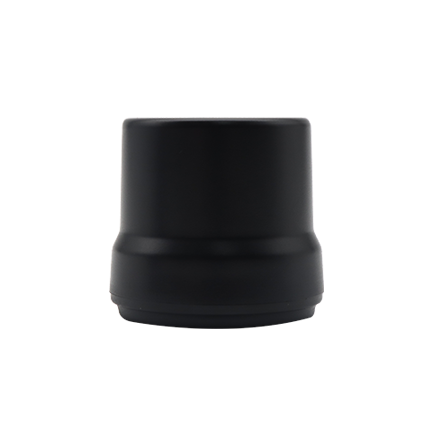

The Harxon HX-CUX618A is a compact, multi-frequency GNSS helix antenna with integrated Wi-Fi and Bluetooth antennas for positioning and wireless connectivity. It supports GPS, GLONASS, Galileo, and BeiDou signals, as well as L-band correction services. Measuring Φ43.6 × 40.8 mm and weighing no more than 30 g, it is designed for integration into UAVs, surveying equipment, and personnel and vehicle monitoring devices. Harxon’s patented D-QHA technology and multi-point feeding design provide stable phase center performance, while a pre-filtered low-noise amplifier helps suppress out-of-band interference. Its integrated antenna design simplifies device development and supports wireless connection and configuration through mobile devices.

Full-Band Multi-Constellation GNSS Support
Integrated GNSS, Wi-Fi, and Bluetooth
IPEX Connector for Easy Integration
Strong Interference Rejection with Pre-Filtered LNA

Key Features

Advanced D-QHA Technology for Consistent Performance

The HX-CUX618A combines patented D-QHA technology with multi-point feeding to maintain a stable phase center. A GNSS antenna gain of up to 2.8 dBi and a wide beam support reliable low-elevation satellite tracking for high-precision positioning in challenging environments.
Strong Anti-interference Performance

An optimized circuit layout and pre-filtered low-noise amplifier help the HX-CUX618A suppress out-of-band interference. This design limits unwanted electromagnetic signals and supports reliable GNSS reception when integrated into UAVs, surveying equipment, and monitoring devices.
Small Form Factor, Light Weight, Designed for Integration

Measuring Φ43.6 × 40.8 mm and weighing no more than 30 g, the HX-CUX618A fits easily into UAVs, surveying equipment, and monitoring devices. Its compact dimensions and lightweight construction help meet space and payload requirements without adding unnecessary bulk.
All-in-one Helix Antenna, Integrated with WIFI&BT Antenna

The HX-CUX618A combines GNSS positioning and Wi-Fi/Bluetooth antennas in a compact design. The integrated Wi-Fi/Bluetooth antenna provides a typical gain of 1 dBi, supporting mobile device connection and configuration while simplifying antenna integration and reducing development costs.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 L-Band WiFi/BT 2.4GHz/5.8GHz
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°
Output VSWR	≤2.0
Gain RHCP(maximum)	2.8dBi

LNA Gain	33dB (Typical)
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤55mA

Dimensions	¢43.6*40.8mm (Cables not included)
Connector	IPEXⅠ GNSS: Cable Length 70mm WIFI: Cable Length 100mm
Weight	≤30g
Mounting	3-NO.3-48UNC screws fixed
