Introduction

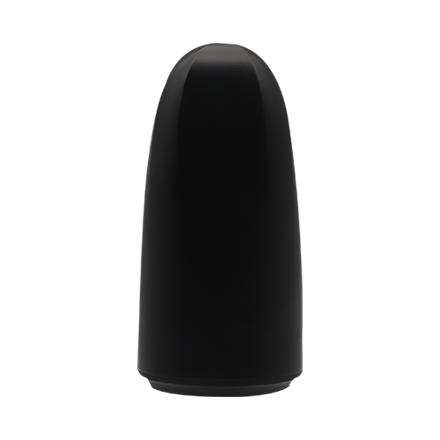

The Harxon HX-CHX600A is a high-performance GNSS antenna engineered for high-precision positioning applications. It delivers exceptional satellite tracking capability across GPS, GLONASS, GALILEO, BeiDou, and supports L-Band correction services for enhanced accuracy in challenging environments. With survey-grade, RTK-level positioning accuracy, the HX-CHX600A ensures reliable and consistent performance, making it an excellent choice for land surveying, mapping workflows, UAV photogrammetry, autonomous flight control, and other professional GNSS-based operations. Its robust design, multi-constellation compatibility, and stable phase-center performance make the HX-CHX600A ideal for system integrators seeking a compact, reliable, and high-precision GNSS solution.

Key Features

Multiple-constellation with L-Band Signal Reception

The Harxon D-Helix™ Antenna is a patented D-QHA multi-constellation antenna, it ensures excellent reception of GPS, Galileo, Beidou, GLONASS as well as L-Band signals in one antenna.
Advanced D-QHA Technology

Harxon’s D-QHA technology ensures more stable performance of wide-angle circular polarization (WACP), and smaller antenna phase center deviation (PCV), which ensures a more precise positioning accuracy.
Tracking in Challenging Environments

The D-Helix™ Antenna is able to track any visible satellites under challenging conditions, providing the positioning solutions with higher precision and reliable data.
Strong Anti-interference Performance

The antenna LNA features an excellent out-of-band rejection performance, which can suppress the electromagnetic interference, providing the stability and reliability of GNSS signals.
Harxon's Toughest Precision Antenna

Harxon’s D-QHA technology ensures more stable performance of wide-angle circular polarization (WACP), and smaller antenna phase center deviation (PCV), which ensures a more precise positioning accuracy.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2/L5/L-Band GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Output VSWR	≤2.0
Gain RHCP(maximum)	1166-1278MHz 4.2dBi (@ Zenith) 2.0dBi(@45° elevation) 0.2dBi(@30° elevation) 1520-1610MHz 3.8dBi (@ Zenith) 1.8dBi(@60°elevation) 0.7dBi(@45°elevation) L-Band 2.5dBi (@ Zenith) 0.4dBi(@60°elevation) -0.5dBi(@45°elevation)

LNA Gain	33dB(typical)
Noise Figure	≤1.5dB
Output VSWR	≤2.0
Out of band rejection (±100MHz)	≥30dB
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤55mA
Group Delay Ripple	＜15ns

Dimensions	¢40*82.6mm
Connector	SMA male
Weight	≤45g
Mounting	33/32＂-48DP6mm (UNC)

Operating Temperature	-40℃ to +70℃
Storage Temperature	-55℃ to +70℃
Humidity	95% non-condensing
Water/Dust Resistance	IP67
Regulatory Compliance	FCC CE RoHS REACH
