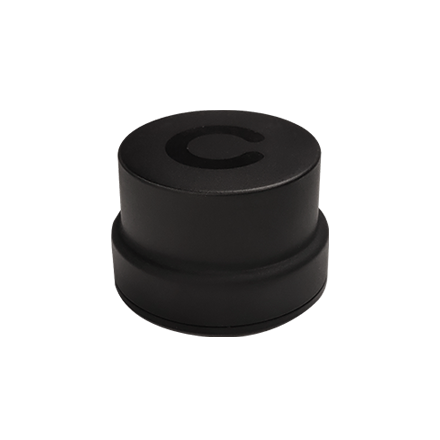

Low-Profile Helix Antenna for UAVs and Surveying

Key Features

• Low Profile, Easy to be Integrated

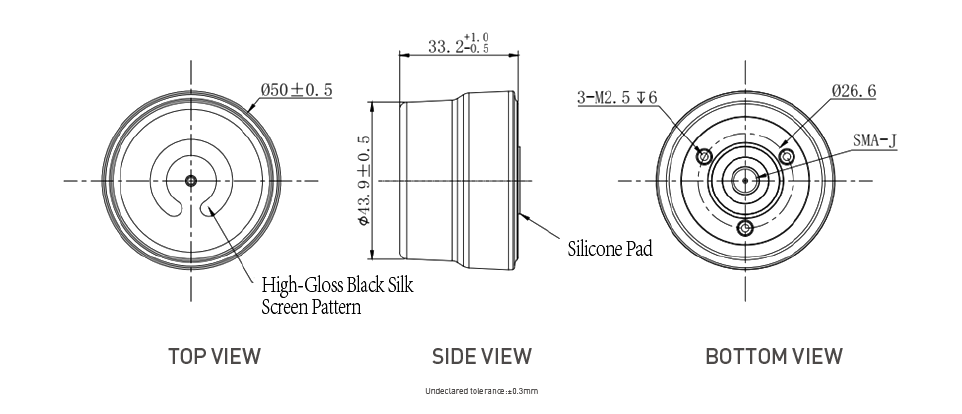

  With a height of just 33 mm and a weight of 43 g, the HX-CUX615A is easy to integrate into UAVs, surveying equipment, and monitoring devices. Its compact, lightweight design helps meet installation requirements where space and payload capacity are limited.

• High Phase Center Stability and Consistent Performance

  Multi-point feeding technology gives the HX-CUX615A a stable phase center for high-precision GNSS positioning. High antenna gain and excellent axial ratios help reduce multipath effects, supporting consistent signal reception for UAV surveying and monitoring applications.

• Strong Anti-interference Performance

  The HX-CUX615A combines an optimized circuit layout with a pre-filtered low-noise amplifier to suppress out-of-band interference. This design helps limit unwanted electromagnetic signals and maintain reliable GNSS reception when integrated into positioning systems.

• Advanced Patented D-QHA Technology

  Harxon’s patented D-QHA technology delivers stable wide-angle circular polarization and high gain for low-elevation satellite reception. It supports reliable GNSS signal tracking in challenging environments, making the HX-CUX615A well suited for demanding UAV applications.
