Introduction

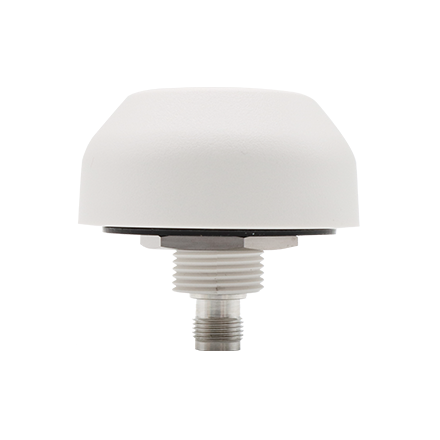

Timing Antenna HX-CT3602A supports GPS, GLONASS and GALILEO signal reception. It’s especially designed for timing, mobile, precision and military applications. It can provide truly circular response over the antenna’s entire bandwidth thereby producing superior multipath signal rejection. This antenna features a highly circular wideband patch element with a high-performance Low Noise Amplifier. This configuration provides excellent axial ratio that is constant across the full frequency band. HX-CT3602A is housed in a permanent mount industrial-grade weatherproof enclosure and is available with a wide variety of connectors. This antenna is also customizable in radome. Conical radomes are recommended for permanent locations to ward off birds and shed ice / snow.

Single-Band Multi-Constellation GNSS Support
High LNA Gain with Strong Out-of-Band Rejection
Excellent Circular Polarization and Multipath Rejection
IP67 Rugged Housing, Operating from -60°C to +85°C

Key Features

High Performance Timing Antenna

HX-CT3602A supports GPS, GLONASS, GALILEO, BDS and QZSS L1-band signals for reliable multi-constellation reception. Designed for timing, mobile, precision and other mission-critical applications, its highly circular response across the operating bandwidth helps reduce multipath effects and improve positioning and timing performance.
Reliable and Consistent Signal Tracking

Featuring a highly circular wideband patch element and a high-performance Low Noise Amplifier, HX-CT3602A provides stable RHCP reception with an axial ratio of ≤3dB, peak gain above 3dBic and a 60° beam width, supporting consistent GNSS signal tracking across demanding operating environments.
Strong Out-of-Band Rejection for Cleaner Signal Reception

With out-of-band rejection greater than 60dB at f0±100MHz, combined with 28±3dB LNA gain and a noise figure of ≤3.5dB, HX-CT3602A helps suppress unwanted signals outside the GNSS operating band while maintaining a strong signal-to-noise ratio for dependable reception.
Rugged Enclosure for Tough Environments

HX-CT3602A is housed in a compact industrial-grade weatherproof enclosure with IP67 protection and an operating temperature range of -60°C to +85°C. Its permanent screw-mount design, customizable radome and optional black or white housing support flexible installation in demanding fixed and outdoor applications.
