Combo Antenna DAMP5GL1L5RA1_J2M

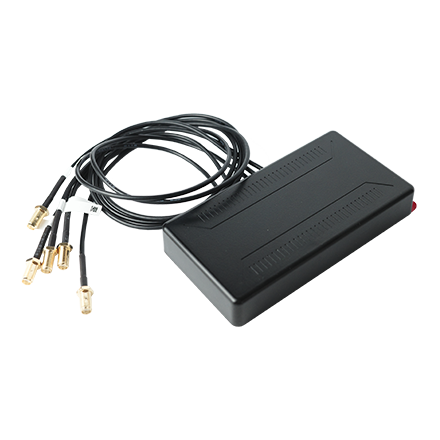

DAMP5GL1L5RA1_J2M is a combo antenna integrating 2×2 MIMO 5G antennas and dual-band GPS L1/L5 GNSS antenna in one compact housing. With wide cellular frequency coverage, integrated GNSS LNA, SMA-J connectors and 2 m RF cables, it delivers reliable connectivity and positioning performance for vehicle, IoT and intelligent terminal applications.
DAMP5GL1L5RA1_J2M combines four 5G cellular antennas and one GPS L1/L5 GNSS antenna in a single housing, supporting both high-speed wireless connectivity and positioning functions
The 5G main antennas cover 820–960 MHz, 1710–2690 MHz, 3300–3800 MHz and 4400–5000 MHz, while the secondary antennas cover 1710–2690 MHz, 3300–3800 MHz and 4400–5000 MHz, enabling broad 4G/5G connectivity
The GNSS antenna supports GPS L1 at 1575.42 MHz and GPS L5 at 1176 MHz, with RHCP polarization, 50-ohm impedance and integrated 30±3 dB LNA for reliable positioning signal reception
Equipped with five SMA-J connectors, LMR100 cable for 5G, RG174 cable for GPS and 2000±100 mm cable length, the antenna supports flexible installation in vehicle, IoT and intelligent terminal applications
| GNSS ANTENNA | |
| Frequency |
GPS L1: 1575.42 MHz ±1.023 MHz; GPS L5: 1176 MHz ±2 MHz |

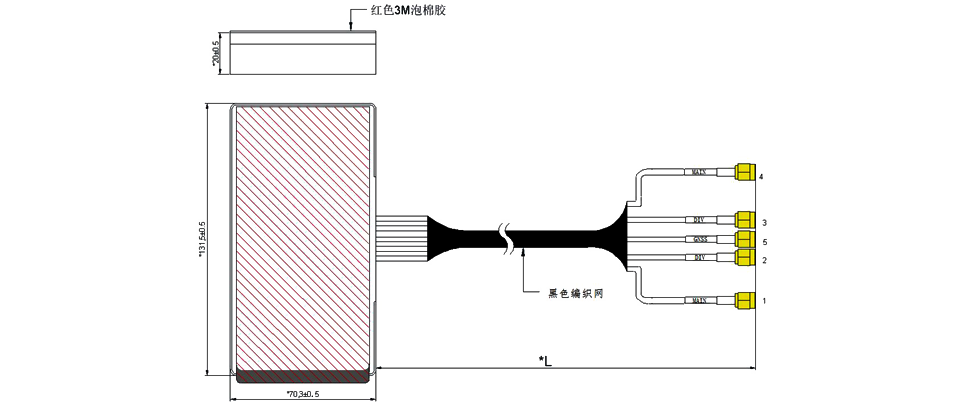

| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Peak Gain | -3.5 dBic @1176 MHz; 1 dBic @1575 MHz |
| 5G Main Antenna | |
| Frequency Range | 820–960 MHz; 1710–2690 MHz; 3300–3800 MHz; 4400–5000 MHz |
| Nominal Impedance | 50 Ω |
| Peak Gain | 3 dBi @820–960 MHz; 8 dBi @1710–2690 MHz; 7 dBi @3300–3800 MHz; 6 dBi @4400–5000 MHz |
| 5G Secondary Antenna | |
| Frequency Range | 1710–2690 MHz; 3300–3800 MHz; 4400–5000 MHz |
| Nominal Impedance | 50 Ω |
| Peak Gain | 8 dBi @1710–2690 MHz; 7 dBi @3300–3800 MHz; 7 dBi @4400–5000 MHz |
| LNA Gain | 30±3 dB |
| Noise Figure | ≤1.5 dB |
| Output VSWR | ≤2 |
| Operation Voltage | 3–5 V |
| Operation Current | 7±3 mA at 3.0 V |
| Dimensions |
113.5±0.5 × 70.3±0.5 × 20±0.5 mm |
| Weight | N/A |
| Connector | SMA-J |
| Mounting | 3M foam adhesive mounting |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +85℃ |
