OEM GNSS Antenna HX-CE101A

Overview

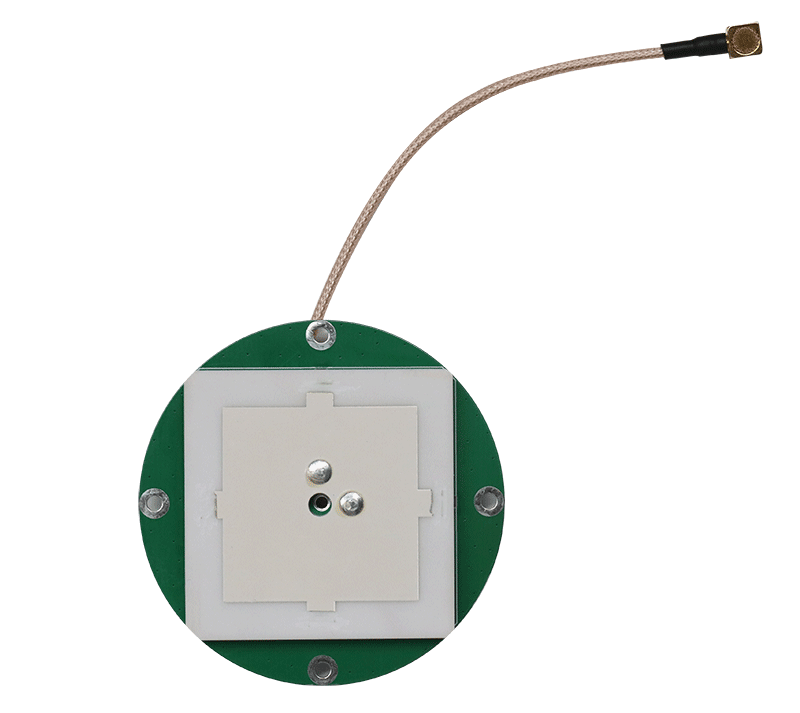

HX-CE101A is an OEM GNSS ceramic antenna that supports Beidou B1, Galileo E1, GPS L1, GLONASS L1. With its high gain, compact size, and precision-tuned stacked patch design, it delivers reliable GNSS positioning for dynamic applications such as UAVs and autonomous vehicles. The antenna features excellent axial ratio and superior multipath signal rejection, making it perfect for precision agriculture, industrial, construction safety, and security OEM applications.

Key Features

Stable Phase Center for Robust Positioning Performance

HX-CE101A offers reliable satellite signals tracking covering Beidou B1, Galileo E1, GPS L1, GLONASS L1. It provides a very stable phase center variation with advanced multipoint feeding technology.

Low Profile, Easy for Integration

HX-CE101A has a compact dimension of φ56*10.6mm, weighing ≤50g for low power consumption. The structure design simplifies the integration and minimizes the overall machine dimension, bringing optimized positioning performance for system integrators.

Tracking in Complex Environments

The ability to receive low elevation signals with high gain and wide beam width makes HX-CE101A an excellent choice for tracking visible satellites under challenging conditions, providing positioning solutions with precision and reliable data。

Parameters

PERFORMANCE

Signal Received

GPS L1
GLONASS L1
GALILEO E1
BDS B1
QZSS L1

Nominal Impedance

50Ω

Polarization

RHCP

Axial Ratio

≤3dB

VSWR

≤2.0

Gain at Zenith

4.5 dB (Based on φ100mm Ground Plane)

LNA

LNA Gain

28±2dB

Noise Figure

≤2dB

VSWR

≤2.0

Operation Voltage

3.3～12VDC

Operation Current

13 mA Typ.

MECHANICAL

Dimensions

φ56*10.6mm

Connector

MCX-JW

Weight

≤50g

Mounting

4xφ2.3mm screws

ENVIRONMENTAL

Operating Temperature

-40℃ to +85℃

Storage Temperature

-55℃ to +85℃

Humidity

95% non-condensing
