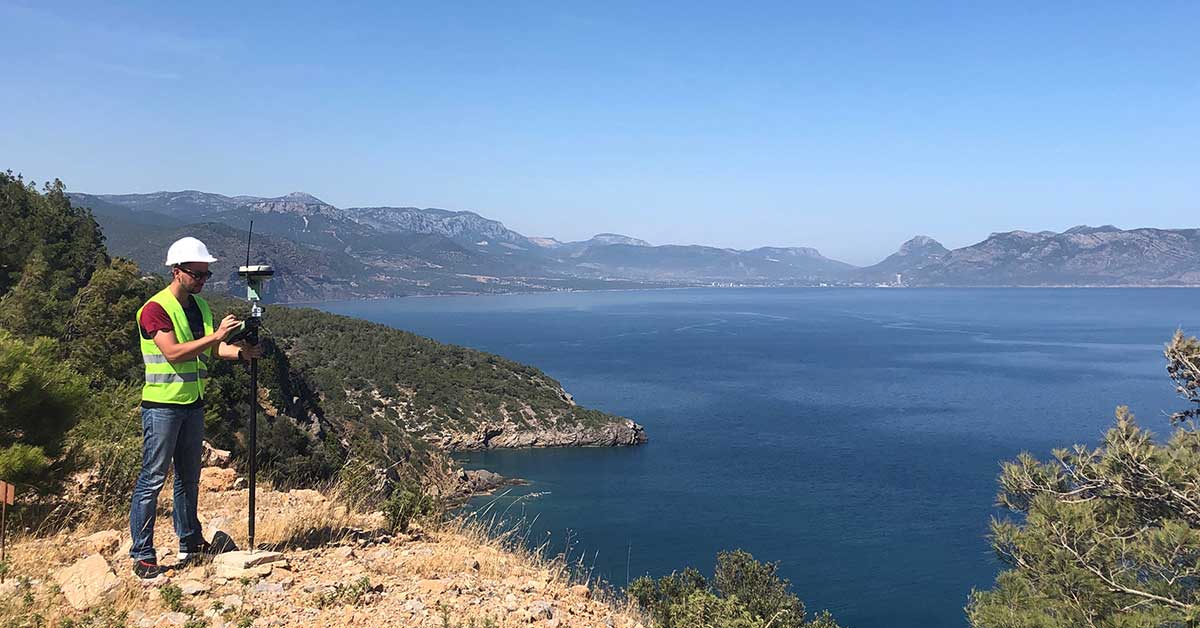

Surveying and Mapping

Key Features of Harxon GNSS Survey Antenna:

Top performance in challenging environments with high-accuracy, survey-grade positioning
Multi-frequency multi-constellation Coverage, superior multi-path rejection performance
Range of sizes from small form to mid-sized to suit almost every application
Embedded options available, easy to integrate GNSS rover & base receiver
Customizable in frequencies, cables, connectors, and installation

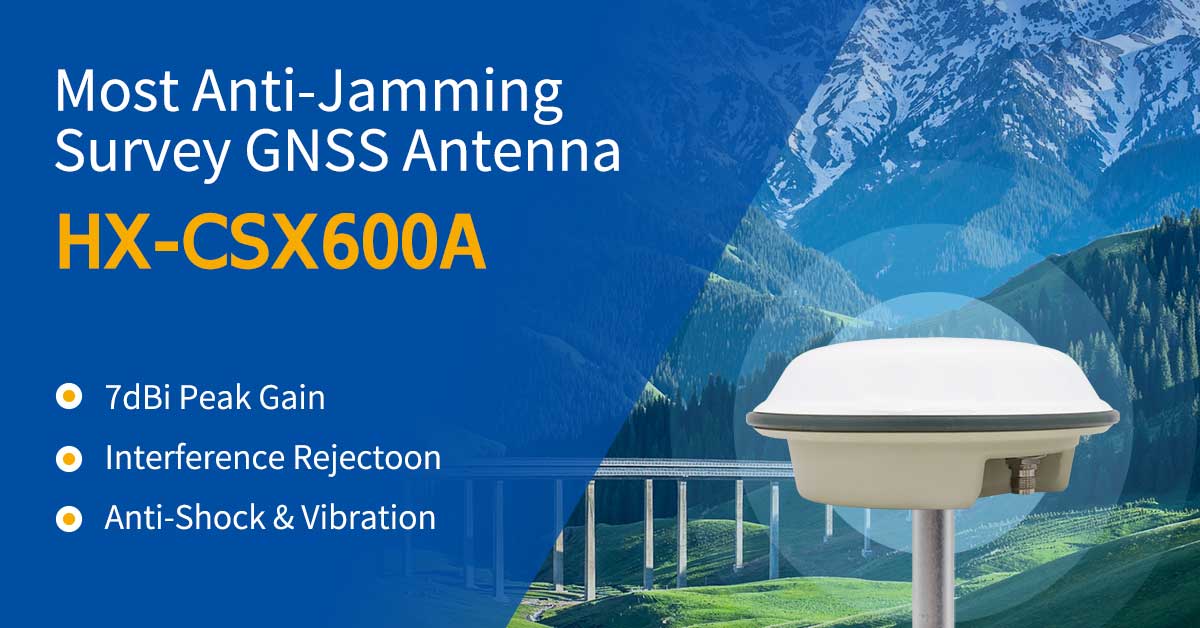

Most Anti-Jamming Survey GNSS Antenna

HX-CSX600A offers full support for reliable and consistent satellite signal tracking. It features at least 5.5dBi high gain at Zenith across all frequency bands (7dBi maximum), -1.5dB high gain at 20-degree low elevation, and 2.0dB low noise figure.

Frequency: GPS L1/L2/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
Peak Gain: 7dBi
Dimensions: ¢160*67.5mm
Weight: ≤500g
Connector: TNC-K

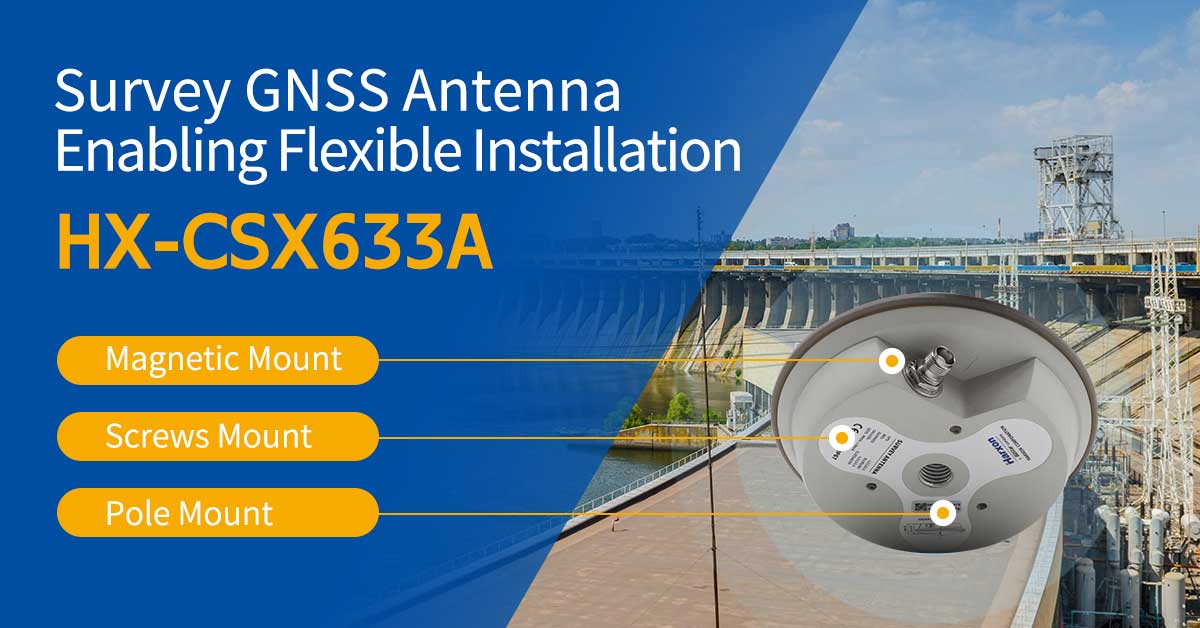

Survey GNSS Antenna with Flexible Installation

HX-CSX633A

HX-CSX633A is designed with a brand-new structure, enabling easy and flexible installations (magnetic mount, screw mount, and pole mount) for different high-precision applications. With a compact and ruggedized housing, it can withstand shock and vibration, providing reliable performance even in harsh environments.

Frequency: GPS L1/L2/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
Peak Gain: 5.5dBi
Dimensions:¢152*57.7mm
Weight: ≤500g
Connector: TNC-K

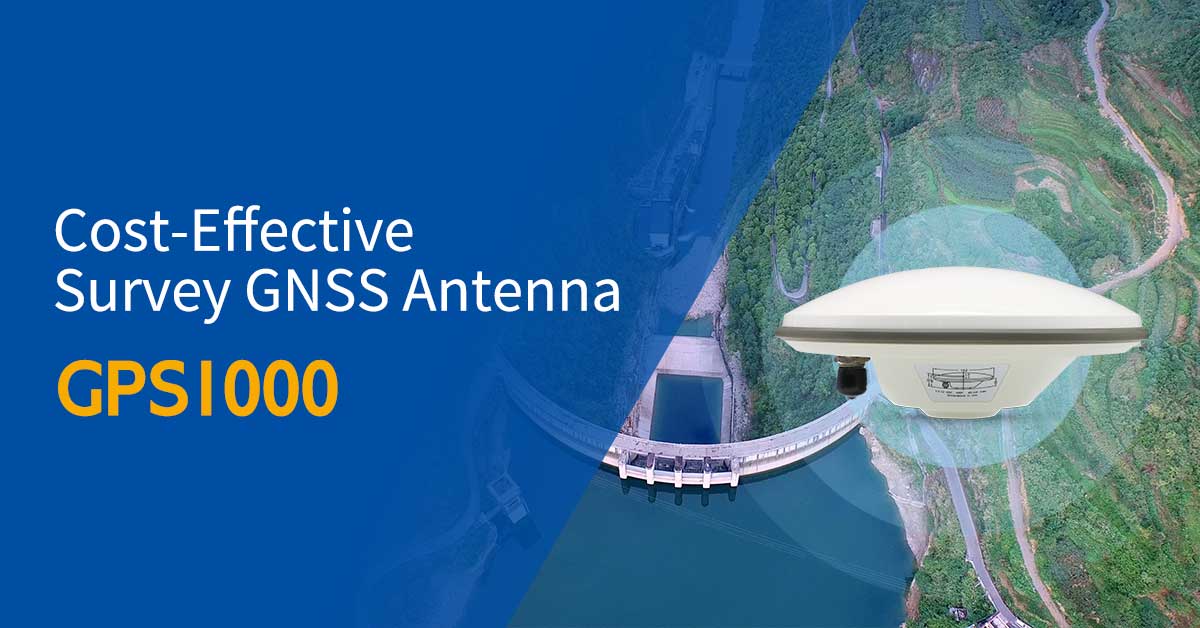

Cost-Effective Survey GNSS Antenna

GPS1000

GPS1000 is a high performance survey GNSS antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS, and GALILEO. It meets the requirements of high precision and multi-constellation compatibility. And it can be used with a variety of receivers, suitable for various occasions.

Frequency:GPS L1/L2/L5/L-Band, GLONASS L1/L2/L3, BDS B1/B2/B3, GALILEO E1/E6/E5a/E5b, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5
Peak Gain: 5.5dBi
Dimensions: ¢152*62.2mm
Weight: 500g
Connector: TNC-K

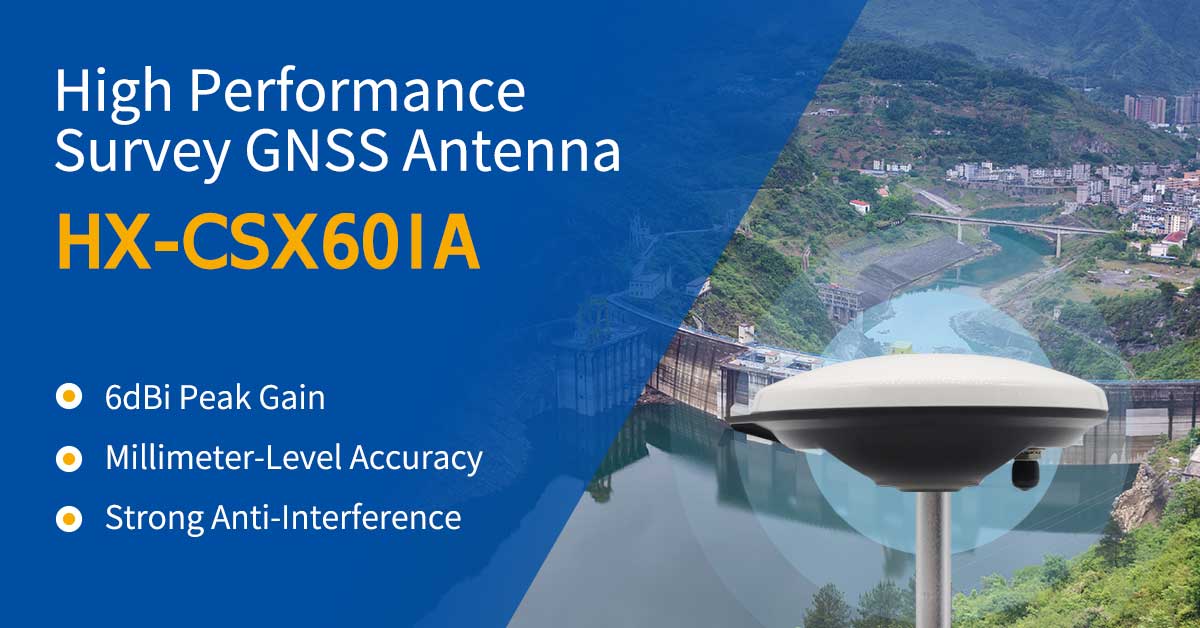

High Performance Survey GNSS Antenna

HX-CSX601A

HX-CSX601A an excellent choice for tracking visible satellites under challenging conditions, providing positioning solutions with precision and reliable data.

Frequency:GPS L1/L2/L5/L-Band, BDS B1/B2/B3, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
Peak Gain: 6dBi
Dimensions: ¢173.4×62.6mm
Weight:≤500g
Connector: TNC-K

Ruggedized Antenna

HX-CVX606A & HX-CVX600A & HX-CVX603A

With IP6x-rated housing for reliable operation in harsh environments, Harxonn ruggedized antennas are designed for high shock and vibration environments. Harxon ruggedized antenna is available in three versions. They provide millimeter-level accuracy, strong anti-interference performance, and a stable phase center, ideal for surveying and I-construction applications.

Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, BDS B1/B2/B3, GALILEO E1/E6/E5a/E5b, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-band
Peak Gain: 5.5 dBi (HX-CVX606A & HX-CVX600A ), 4dBi (HX-CVX603A)
Dimensions:¢150*57.3mm (HX-CVX606A), ¢150*53mm(HX-CVX600A), ¢90.6*26mm(HX-CVX603A)
Weight: 800g(HX-CVX606A), 600g(HX-CVX600A), 250g (HX-CVX603A)
Connector: TNC-K

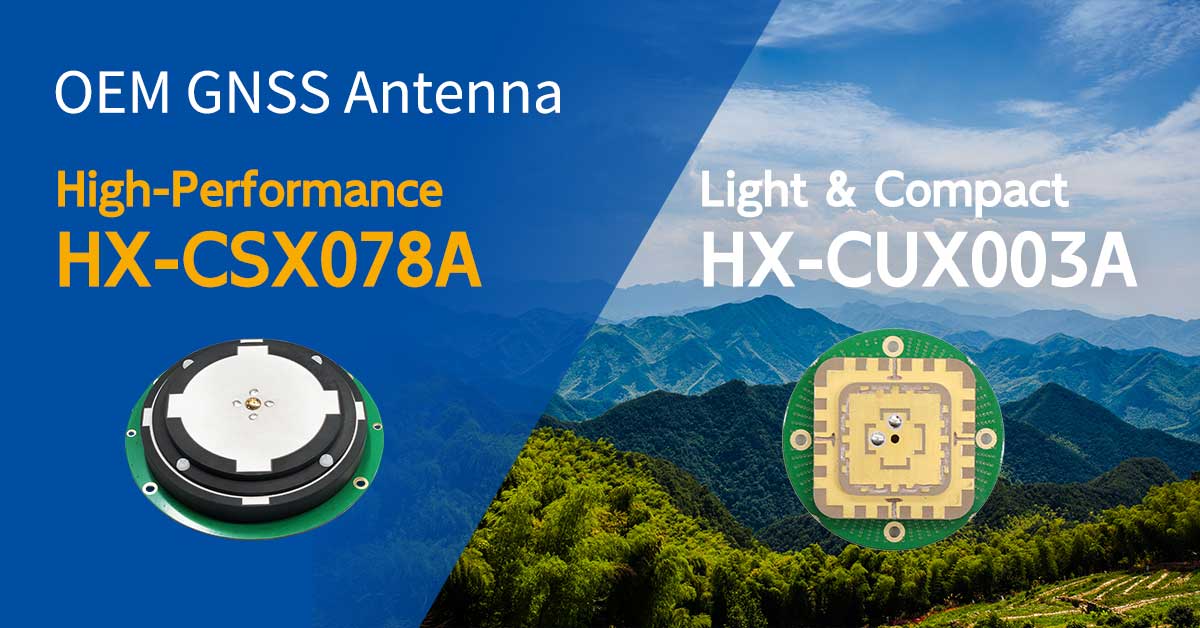

OEM GNSS Antenna

HX-CSX078A & HX-CUX003A

Harxon OEM antennas are precision-tuned, stacked patch GNSS antennas that provide reliable and consistent positioning services across the full bandwidth of the antenna. Its superior positioning accuracy and powerful system compatibility make it ideal to be integrated into various surveying and RTK applications.

Frequency:GPS L1/L2/L5, GLONASS L1/L2/L3, BDS B1/B2/B3, GALILEO E1/E6/E5a/E5b, QZSS L1/L2/L5(HX-CUX003A), QZSS L1/L2/L5/L6(HX-CSX078A), IRNSS L5, SBAS L1/L5, L-band
Peak Gain: 5.5dBi (HX-CSX078A), 2.5dBi (HX-CUX003A)
Dimensions: ¢111*24.5mm (HX-CSX078A), ¢60*16.7mm (HX-CUX003A)
Weight: 220g (HX-CSX078A), 60g (HX-CUX003A)
Connector: MCX-C-JW1.5

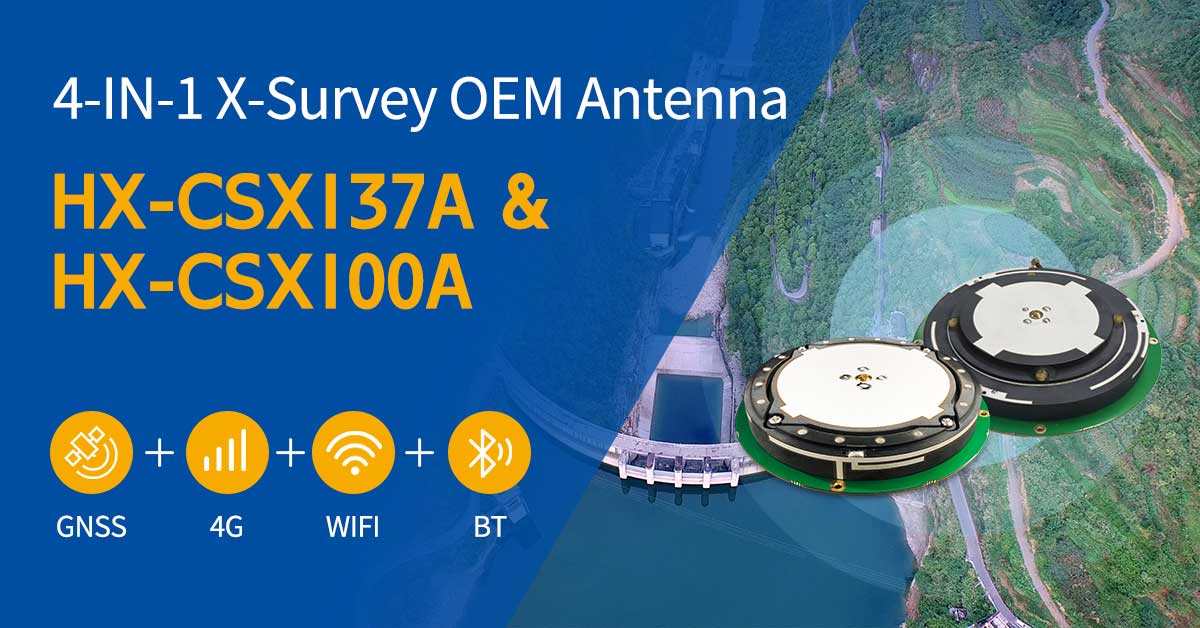

4-IN-1 X-Survey OEM Antenna

HX-CSX137A & HX-CSX100A

X-Survey GNSS antenna is the unique 4-in-1 OEM antenna series for both navigation and communication in surveying applications. It provides standard Wi-Fi, Bluetooth, 4G and multiple constellation signals reception for GNSS positioning.

Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, BDS B1/B2/B3, GALILEO E1/E6/E5a/E5b, QZSS L1/L2/L5, IRNSS L5, SBAS L1/L5, L-band
Peak Gain: 4.5 dBi (HX-CSX137A), 5dBi (HX-CSX100A)
Dimensions:¢111*23.8mm (HX-CSX137A), ¢125*27.5mm(HX-CSX100A)
Weight:150g(HX-CSX137A), 220g(HX-CSX100A)
Connector: MCX-C-JW1.5
