Intelligent Connected Vehicle

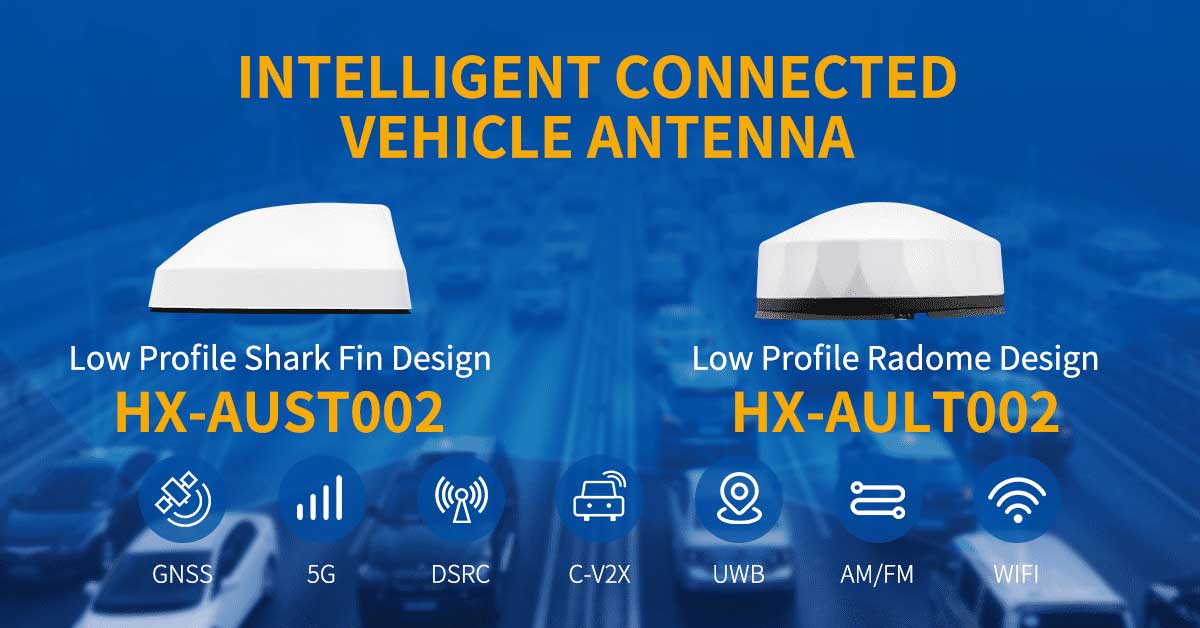

Intelligent Connected Vehicle Antenna

Harxon ICV Antenna integrates multi-constellation multi-band GNSS antennas for reliable and precise positioning, 5G antennas for dedicated short range (DSRC), and vehicle-to-everything (C-V2X) communication. The low-profile shark fin/ radome design minimizes damage from overhead objects. It reduces wind resistance, and the IP67 ruggedized housing ensures a long lifespan in tough environmental conditions.

Configuration: 1x GNSS Antenna, 4*5G, 2*C-V2X
Gain/Efficiency (typical/average): GNSS 3.5dBic(HX-AUST002), 4.0dBic(HX-AULT002)
Dimensions: L160*W85*H68mm (HX-AUST002), φ136*H58mm(HX-AULT002)
FAKRA-Z female (customizable)

High-precision GNSS Vehicle Antenna

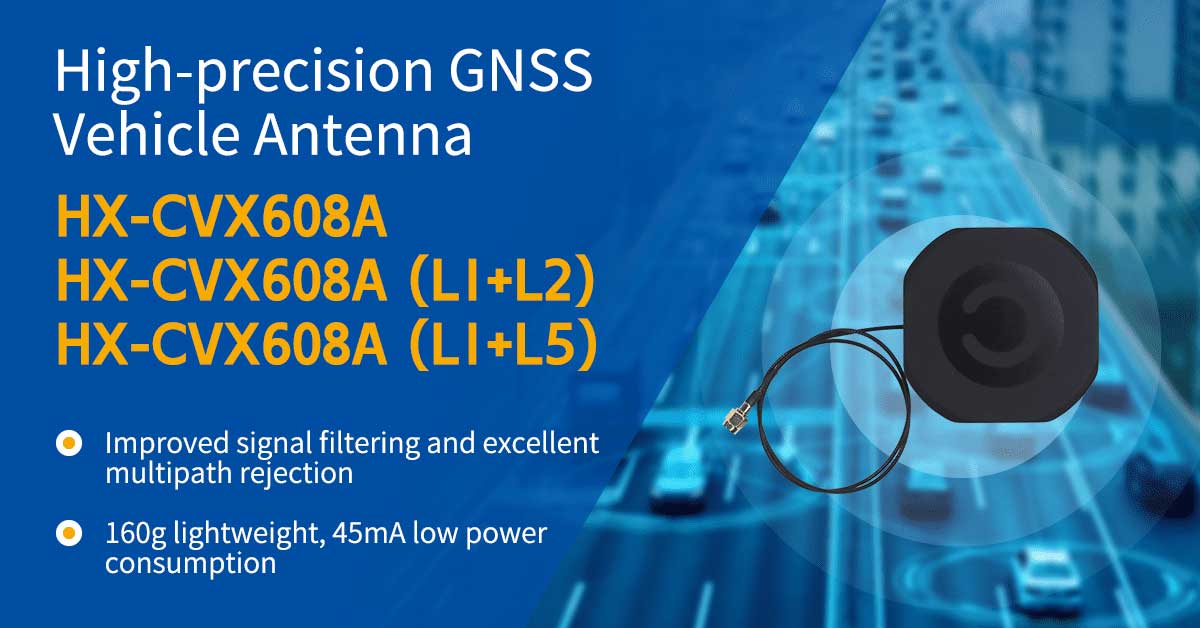

HX-CVX608A

Our High-precision GNSS vehicle antenna is capable of providing decimeter-level accuracy to ensure a vehicle stays in its lane or a safe distance from other vehicles. HX-CVX608A, designed for high-dynamic applications, guarantees stable GNSS signal tracking performance in tough environments with compact form factor, IP67 ruggedized housing and flexible installations. Based on users' different frequency requirements, we also provide two additional versions: HX-CVX608A(L1+L2), HX-CVX608A(L1+L5).

Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-band
Peak Gain: 4dBi
Dimensions: Φ81mm*81mm*25mm
Weight: ≤160g
Connector: SMA-J-RG316

High-precision GNSS Vehicle Antenna

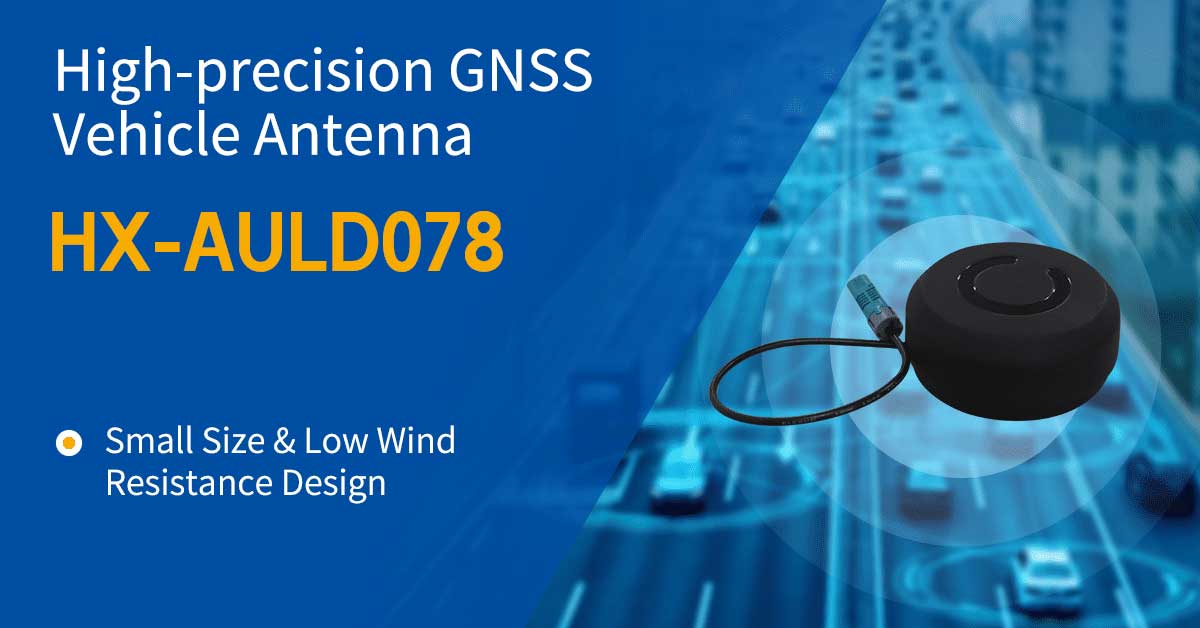

HX-AULD078

HX-AULD078 is a high-performance automotive multiband antenna, designed and crafted for high-precision positioning while being robust and reliable. With a compact form factor, ruggedized housing, and flexible installations, this antenna greatly improves positioning accuracy under challenging environmental conditions, ideal for agricultural tractors, autonomous vehicles, and unmanned delivery vehicles.

Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b, BDS B1/B2/B3, QZSS L1/L2/L5, IRNSS L5, L-Band
Peak Gain: 3.0dBi
Dimensions:¢65*H29.8mm
Connector: MCX Male (Customizable)

Standard-Precision GNSS Vehicle Antenna

Glead’s high-performance external/embedded ceramic antenna fully meets requirements for submeter and centimeter navigation and positioning, and it is widely used in agricultural navigation, unmanned aircraft navigation, unmanned courier vehicle navigation, and commercial vehicle navigation.

DAML1L5RS4JM1_J2.5M-N (L1+L5 EXTERNAL)

SPATB1L1G1364BL5456_JHS04 (L1+L5 EMBEDDED)

Frequency:GPS L1/L5, GLONASS L1, BDS B1
Peak Gain: 2dBi (EXTERNAL) ; 1dBi (1176MHz), 2dBi (1559-1610MHz) (EMBEDDED)
Dimensions:67*67*12mm (EXTERNAL); 55*55*14.5mm (EMBEDDED)
Connector: MCX Male (Customizable) (EXTERNAL); Universal IPEX (Customizable) (EMBEDDED)

Communication and Navigation Antenna

For autonomous vehicles, communication and navigation antennas are crucial components that enable reliable operation and connectivity. A combined antenna can provide optimal performance in the most challenging environments.

DAMBA4E10T11YA_K3M_KH

Frequency: GNSS: GPS L1, BDS B1; 4G: 824-960M & 1710-2690M
Peak Gain: 4.5dBi
Dimensions:Φ76.8*H15mm
Connector: Universal FAKRA (Customizable)

SFA4BL14M_A7900207_K200MM

Frequency: GNSS: 1573-1576MHz; 4G: 824-960MHz, 1710-2690MHz; AM: 520-1710MHz; FM: 87.5-108MHz
Peak Gain: 4.5dBi
Dimensions:181*15.2*66.5mm
Connector: GNSS: FAKRA-C, 4G(M): FAKRA-D, 4G(A): FAKRA-E, AM/FM: ISO-J

Communication Antenna

Glead’s communication antennas for autonomous vehicles typically support multiple technologies, including Cellular networks (e.g., 4G/5G LTE) for high-speed data transmission and internet connectivity, Wi-Fi and Bluetooth for local connectivity, and interactions with nearby devices and infrastructure.

PAM900CVT11M13_K1M

Frequency:GNSS: 1573-1576MHz; 4G(M): 824-960MHz, 1717-2690MHz; 4G(A): 1710-2690MHz
Peak Gain:4G(M) 1.5@820-960, 4.0@1710-2690, 4G(A) 3.0@1710-5000
Dimensions:110*42*18.3mm
Connector: Universal FAKRA (Customizable)

GSM_PAI_900-1800A⁽¹⁾ & DAI790_2700_W07A ⁽²⁾

Frequency: 890-960MHz, 1710-2170MHz ⁽¹⁾; 790-960MHz, 1700-2700MHz ⁽²⁾
Peak Gain: 1.5@890-960MHz, 3.0@1710-2170MHz ⁽¹⁾;1.5@790-960MHz, 4.5@1700-2700MHz ⁽²⁾
Dimensions: 24*5.6*4.4mm⁽¹⁾; 33*6*3mm⁽²⁾
