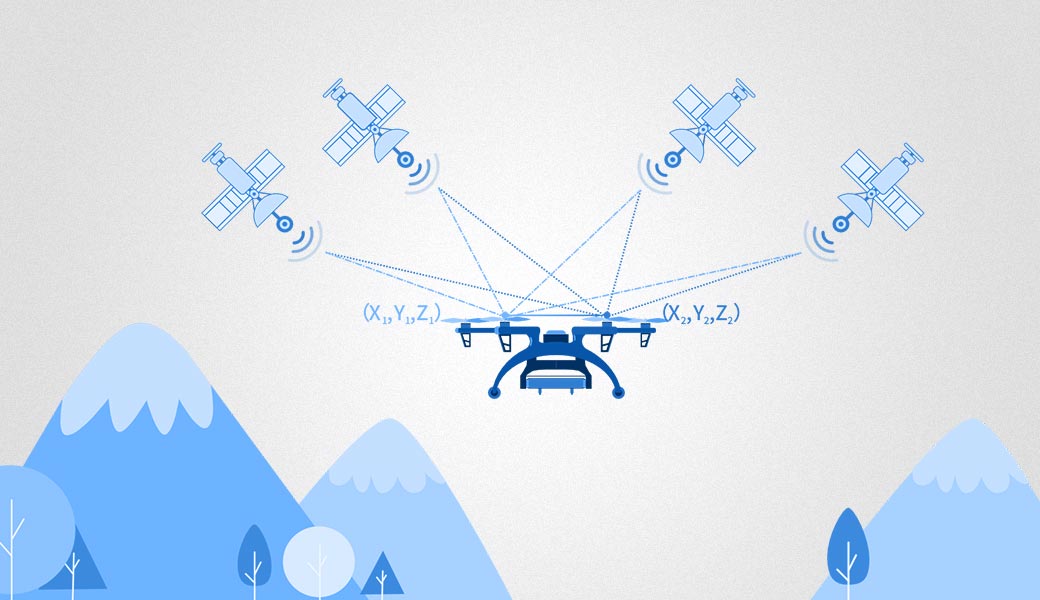

Unmanned Aerial Vehicles

Key Features of Harxon Helix Antenna:

Comprehensive GNSS Support
Strong Anti-interference Performance
Millimeter Level Positioning Accuracy
Multifunctional: GNSS/WiFi/BT/Board
Easy to be Integrated into Systems
Customizable in Connector/Cable/Installation

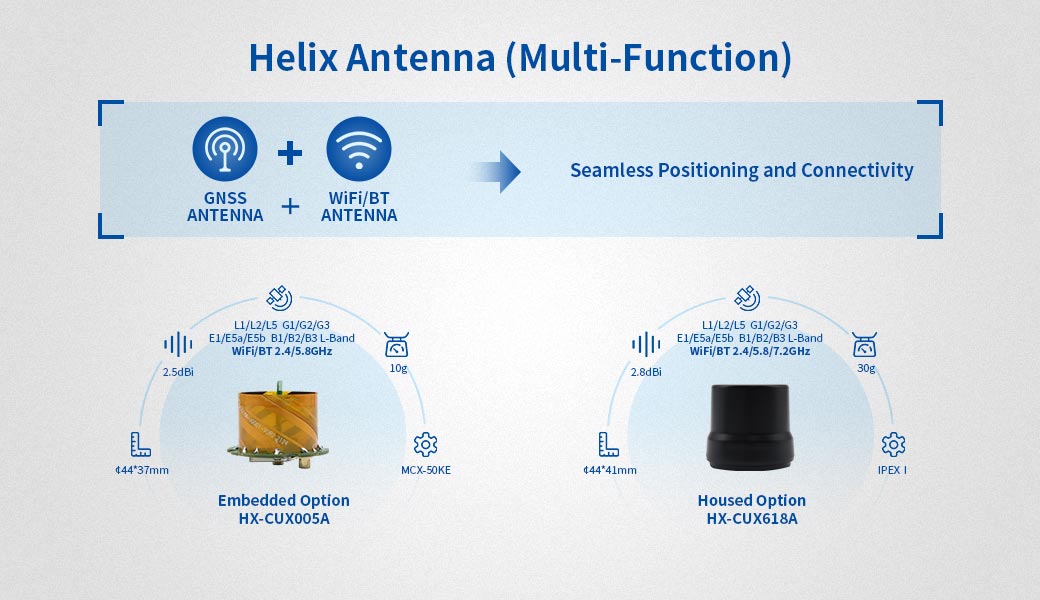

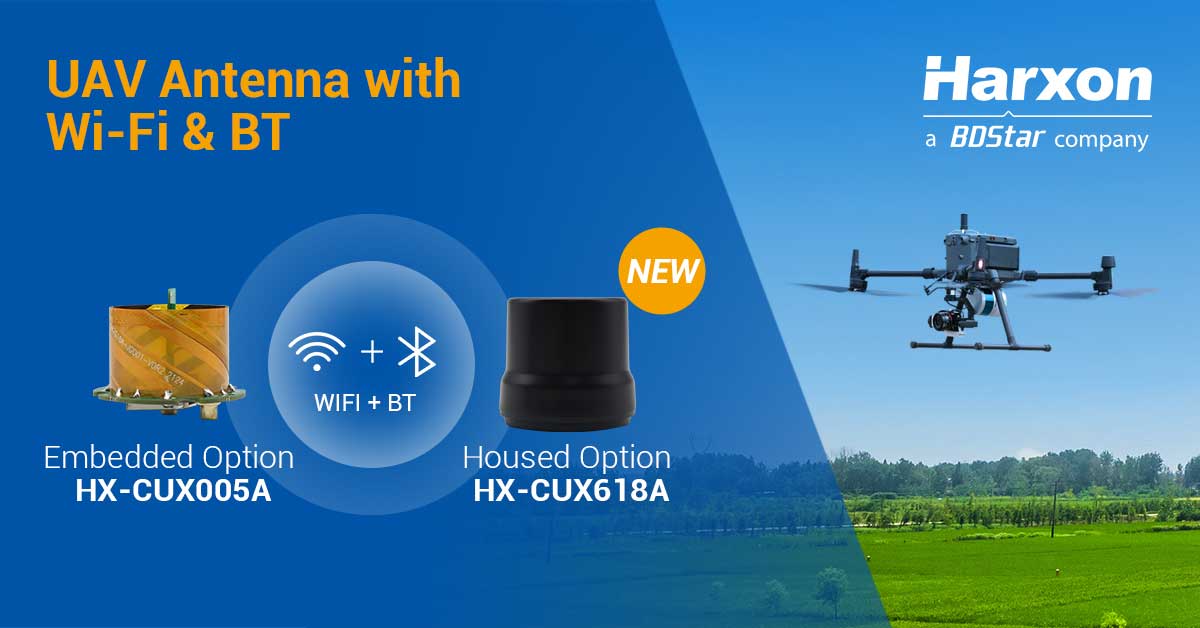

Helix Antenna with WiFi & BT Antenna

HX-CUX618A is the housed version of the multi-functional helix antenna HX-CUX005A. They’re designed with the integration of GNSS antenna and WiFi/BT antenna, enabling communication and navigation without mutual interference.

Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, IRNSS L5 (HX-CUX005A), SBAS L1/L5 (HX-CUX005A), L-Band
Peak Gain: 2.5dBi (HX-CUX005A), 2.8dBi (HX-CUX618A)
Dimensions: ¢44*35mm (HX-CUX005A), ¢43.6*40.8mm (HX-CUX618A)
Weight: 10g (HX-CUX005A), 50g (HX-CUX618A)
Connector: GNSS/WiFi: MCX-50KEIPEX (HX-CUX005A), IPEXⅠ (HX-CUX618A)

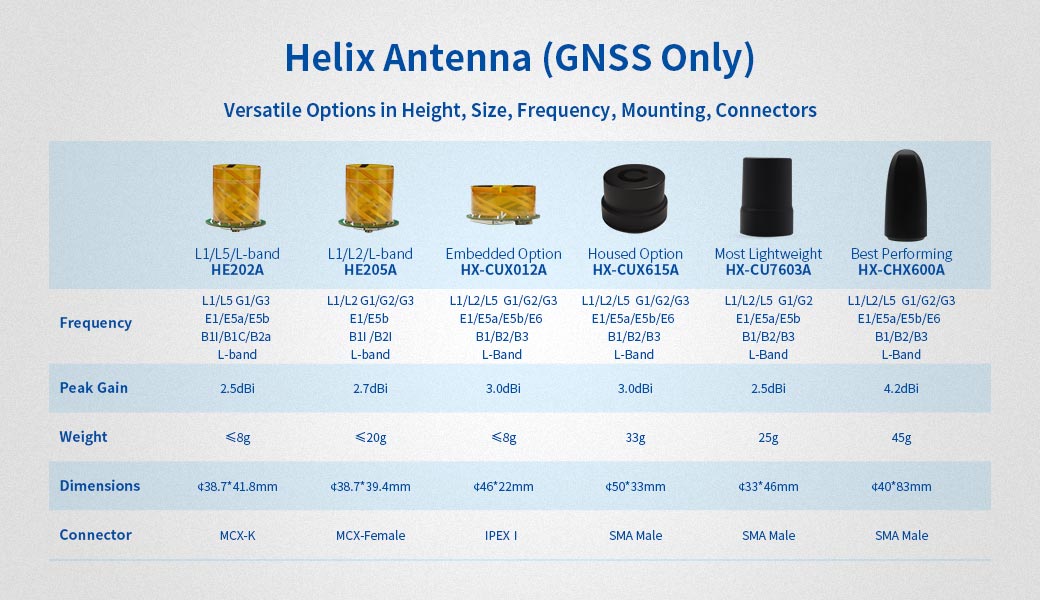

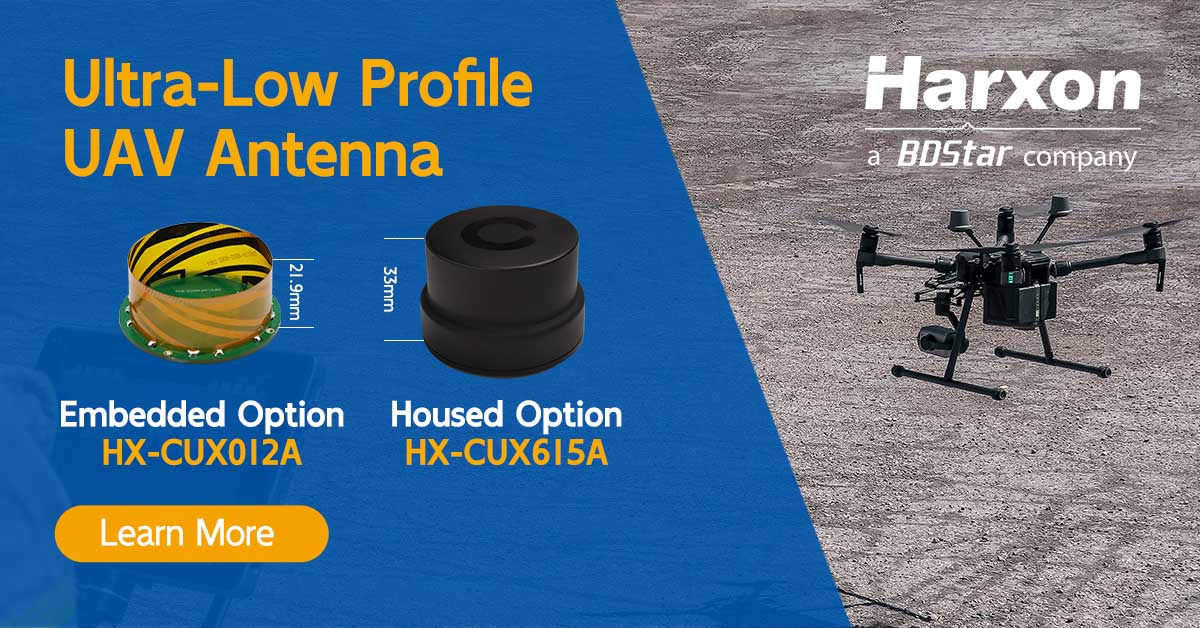

Ultra-Low Profile Helix Antenna

HX-CUX012A & HX-CUX615A

HX-CUX615A is the housed version of the super low profile helix antenna HX-CUX012A. They’re designed with extremely low profile and lightweight, which reduces the overall weight of applications and meets the strict demands of low profile.

Frequency: GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
Peak Gain: 2.8dBi
Dimensions: ¢46*21.9mm (HX-CUX012A), ¢50*33mm (HX-CUX615A)
Weight: 8g (HX-CUX012A), 43g (HX-CUX615A)
Connector: IPEXⅠ

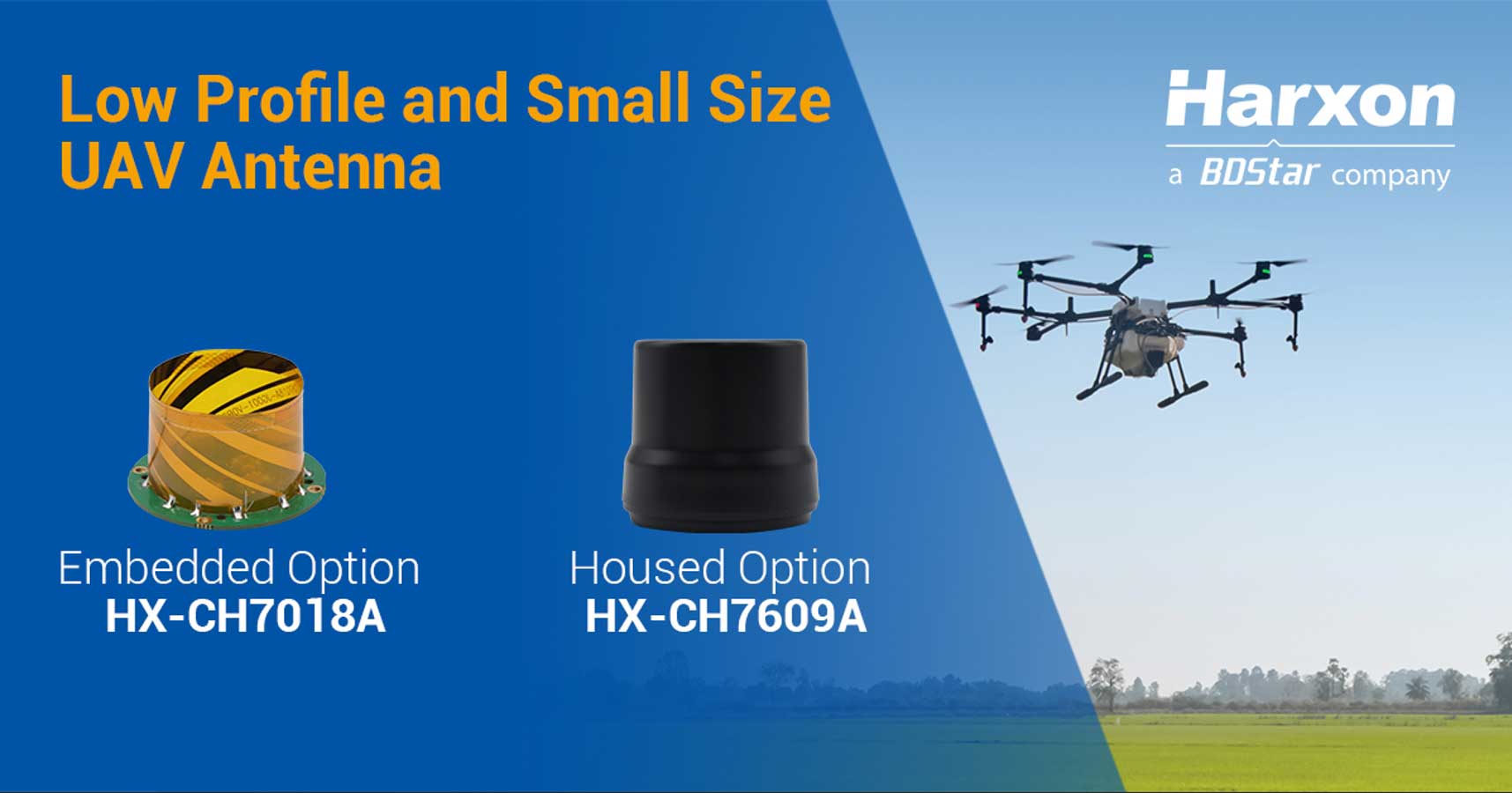

Low Profile and Small Size Helix Antenna

HX-CH7018A & HX-CH7609A

HX-CH7609A is the housed version of the high performance helix antenna HX-CH7018A. They are smaller in size, lighter in weight and customizable, designed for high precision positioning and superior satellite signal tracking.

Frequency: GPS L1/L2/L5, GLONASS L1/L2, GALILEO E5a/E5b, BDS B1/B2/B3, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
Peak Gain: 2.8dBi
Dimensions: ¢44*28mm (HX-CH7018A), ¢43.6*40.8mm (HX-CH7609A)
Weight: 8g (HX-CH7018A), 30.5g (HX-CH7609A)
Connector: IPEX Female (HX-CH7018A), SMA Male (HX-CH7609A)

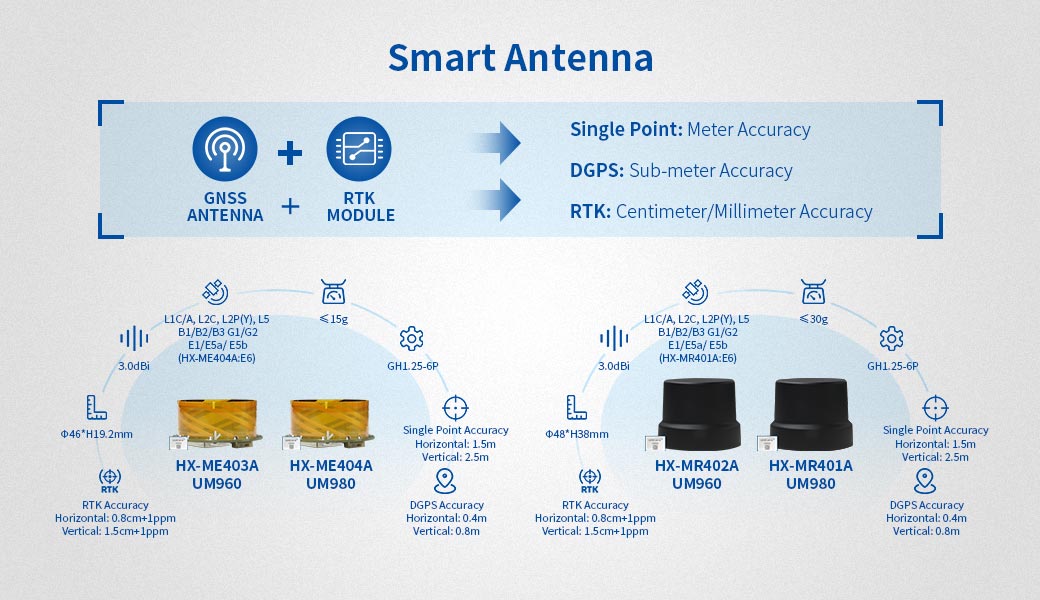

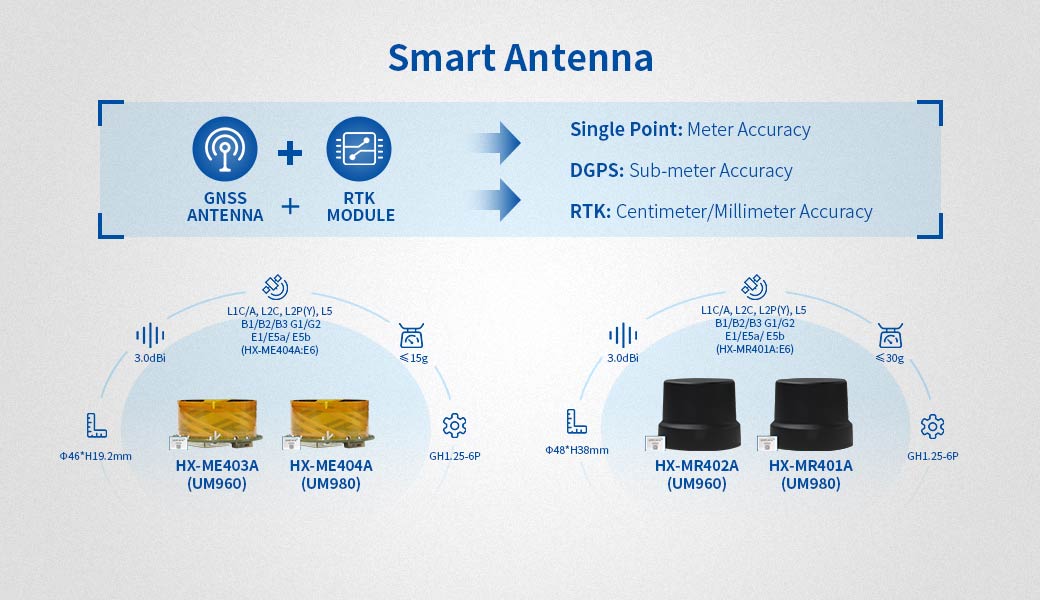

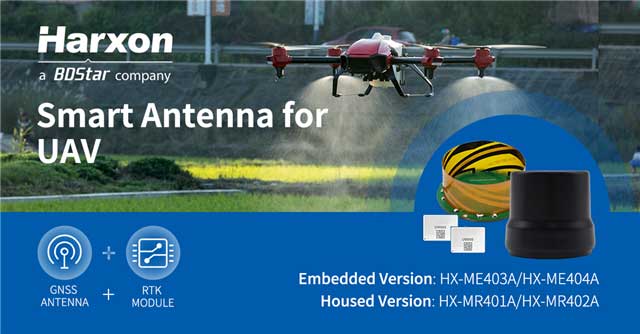

Smart Antenna Integrated with RTK Module

HX-ME403A & HX-ME404A

HX-ME403A/HX-ME404A is an embedded multi-band multi-constellation smart antenna developed by Harxon. They combine the high performance and lightweight of Harxon’s helix antenna with the advanced RTK engine and processing of the RTK positioning module UM960/UM980.

Single Point Accuracy: Horizontal: 1.5m, Vertical: 2.5m
DGPS Accuracy: Horizontal: 0.4m, Vertical: 0.8m
RTK Accuracy: Horizontal: 0.8cm+1ppm, Vertical: 1.5cm+1ppm
Weight: ≤15g
Dimensions: Φ46*H19.2mm

Smart Antenna Integrated with RTK Module

HX-MR401A & HX-MR402A

HX-MR402A/HX-MR401A weighs less than 40g with IP67-rated enclosure, 48mm high and 38mm dia. The seamless integration delivers single-point meter level accuracy, DGPS sub-meter level accuracy, and RTK centimeter/millimeter level accuracy, which targets the UAV market

Single Point Accuracy: Horizontal: 1.5m, Vertical: 2.5m
DGPS Accuracy: Horizontal: 0.4m, Vertical: 0.8m
RTK Accuracy: Horizontal: 0.8cm+1ppm, Vertical: 1.5cm+1ppm
Weight: ≤40g
Dimensions: Φ48*H38mm
