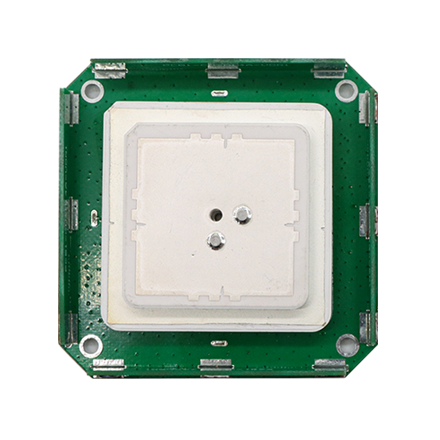

UAV Antenna HX-CUX014A (L1+L5)
The embedded GNSS antenna HX-CUX014A(L1+L5) is a high gain, low profile and compact active GNSS antenna that provides reliable and consistent positioning services for high dynamic applications such as UAV, small robots and autonomous vehicles. It features new structure, small size, high sensitivity and low power consumption.
HX-CUX014A(L1+L5) offers four support for superior satellite signals tracking, including GPS, GLONASS, Galileo and BeiDou. It offers a very stable phase center variation with advanced multipoint feeding technology
HX-CUX014A(L1+L5) is equipped with a robust pre-filtered LNA to minimize de-sensing from high level out-of-band signals, and restraints possible electromagnetic interferences for consistent and reliable GNSS signals.

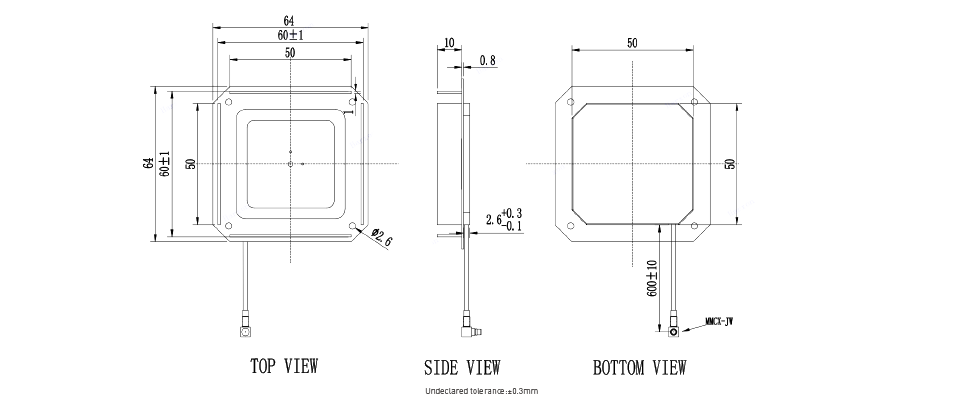

HX-CUX014A(L1+L5) has a compact dimension of 64mm *64mm*13.4mm, weighing only 90g for low power consumption. The new structure design simplifies the integration and minimizes the overall machine dimension.
| Signal Received | GPS L1/L5 GLONASS L1 GALILEO E1/E5a BDS B1I/B1C/B2a |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Azimuth Coverage | 360° |
| Output VSWR | ≤2.0 |
| Gain RHCP (maximum) | 1166-1278MHz 4dBi (@Zenith) 1520-1610MHz 4dBi (@Zenith) L-band 3dBi (@Zenith) |
| LNA Gain | 33±2dB |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | +3.3V to +12V DC |
| Operation Current | ≤50mA |
| Group Delay Ripple | ≤5ns |
| Dimensions | 64mm*64mm*13.4mm |
| Connector | MMCX-JW |
| Weight | ≤90g |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +85℃ |
| Humidity | 95% non-condensing |
