Introduction

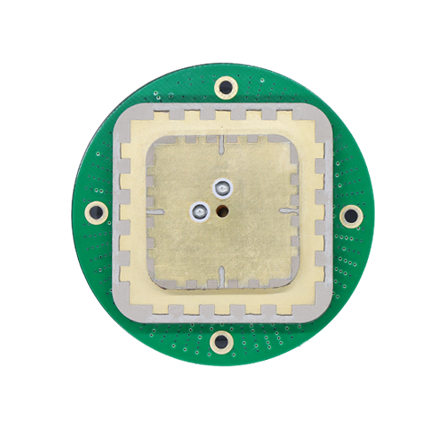

Harxon HX-CU7001A is a low-profile embedded GNSS antenna for UAVs, precision agriculture and other high-dynamic positioning systems. Supporting GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS, it combines advanced multipoint feeding technology with a pre-filtered LNA for stable phase center performance, reliable low-elevation satellite tracking and strong out-of-band interference rejection. Measuring Φ60 × 16.7 mm and weighing ≤60 g, its compact design, low power consumption and customizable cables and connectors simplify integration into space-constrained platforms for navigation, remote sensing, infrastructure inspection and other demanding positioning applications.

Triple-Band Multi-Constellation GNSS Support
Low-Profile 16.7 mm Design, Weighing ≤60 g
Customizable Cables and Connectors for Integration
Enhanced Signal Filtering and Multipath Rejection

Key Features

Reliable and Consistent Signal Tracking

HX-CU7001A supports GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS. Its multipoint feeding technology provides low phase center variation, while symmetric radiation patterns and wide-angle circular polarization support reliable low-elevation satellite tracking for precise GNSS positioning.
Small Size, Light Weight and Low Power Consumption

Measuring Φ60 × 16.7 mm and weighing ≤60 g, HX-CU7001A offers a low-profile embedded design for UAV integration. Current consumption of ≤45 mA helps limit power demand, while customizable cables and connectors accommodate different installation requirements.
Strong Anti-interference Performance

HX-CU7001A features a pre-filtered low-noise amplifier (LNA) to suppress strong out-of-band signals and reduce receiver desensitization. This helps maintain stable GNSS reception in complex electromagnetic environments during UAV operations, infrastructure inspection and precision agriculture.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2 GLONASS L1/L2 GALILEO E1 BDS B1/B2/B3 QZSS L1/L2 SBAS L1
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°(omni-directional)
Output VSWR	≤2.0
Peak Gain	2.5dBi

LNA Gain	36±2dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3V to +12V DC
Operation Current	≤45mA
Differential Propagation Delay	≤5ns
