Introduction

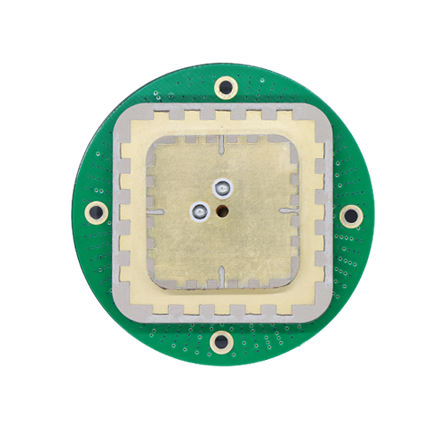

Harxon HX-CUX003A is a compact, low-profile embedded active GNSS antenna designed for UAVs, precision agriculture and other high-dynamic positioning applications. It supports full-band satellite signal reception from GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS and SBAS, along with L-Band correction signals. Advanced multipoint feeding technology provides low phase center variation and reliable low-elevation satellite tracking, while a pre-filtered LNA suppresses out-of-band interference for stable GNSS reception. Measuring Φ60 × 16.7 mm and weighing ≤60 g, its low power consumption and customizable cables and connectors simplify integration into space-constrained platforms for remote sensing, infrastructure inspection and precision positioning.
-
Full-Band Multi-Constellation GNSS Support
-
Low-Profile 16.7 mm Design, Weighing ≤60 g
-
Customizable Cables and Connectors for Integration
-
Enhanced Signal Filtering and Multipath Rejection
