UAV Antenna HX-CUX014A (Full Band)

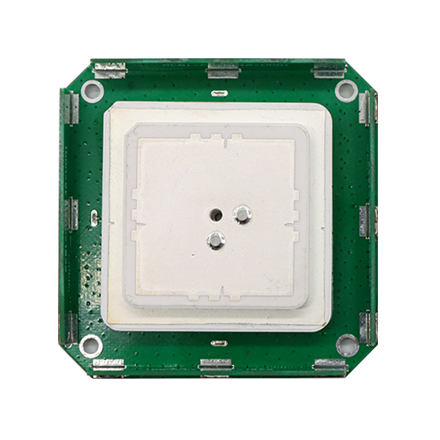

The embedded full frequency GNSS antenna HX-CUX014A is a high gain, low profile and compact active GNSS antenna that provides reliable and consistent positioning services for high dynamic applications such as UAV, small robots and autonomous vehicles. It features new structure, small size, high sensitivity and low power consumption.
HX-CUX014A offers full support for superior satellite signals tracking. It offers a very stable phase center variation, exceptional low elevation satellite tracking with symmetric radiation patterns.
HX-CUX014A is equipped with a robust pre-filtered LNA to minimize de-sensing from high level out-of-band signals, and restraints possible electromagnetic interferences for consistent and reliable GNSS signals.
HX-CUX014A has a compact dimension of 64mm *64mm*13.4mm, weighing only 90g for low power consumption. The new structure design simplifies the integration and minimizes the overall machine dimension.
| Signal Received | GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 IRNSS L5 L-Band |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Azimuth Coverage | 360° |
| Output VSWR | ≤2.0 |
| Gain RHCP (maximum) | 1166-1278MHz 4dBi (@Zenith) 1520-1610MHz 4dBi (@Zenith) L-band 3dBi (@Zenith) |
| LNA Gain | 33±2dB |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | +3.3V to +12V DC |
| Operation Current | ≤55mA |
| Group Delay Ripple | ≤5ns |

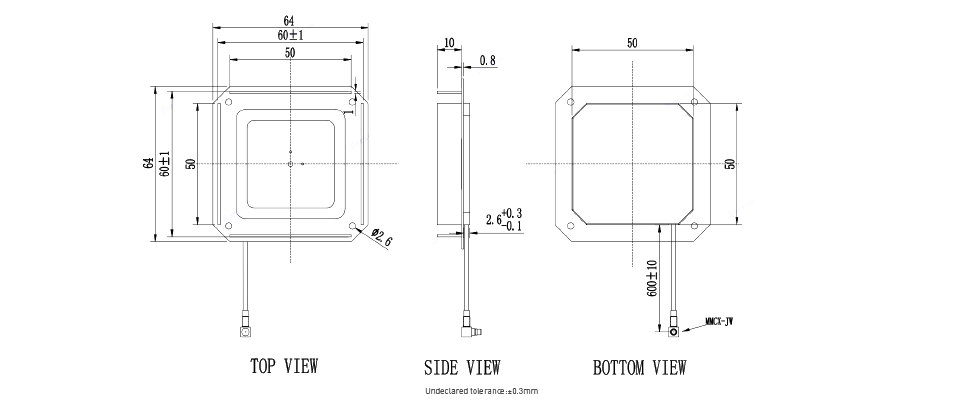

| Dimensions | 64mm*64mm*13.4mm |
| Connector | MMCX-JW |
| Weight | ≤90g |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +85℃ |
| Humidity | 95% non-condensing |
