Introduction

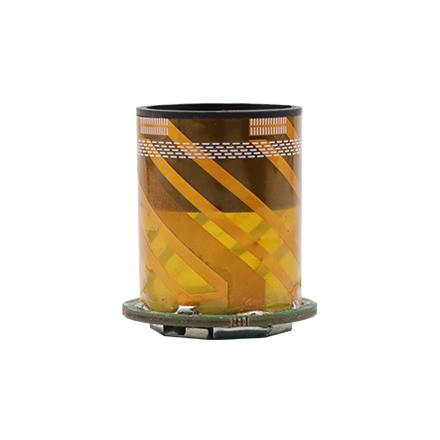

Harxon HX-CU7005A is a high-performance embedded helix GNSS antenna designed for high-precision positioning and UAV applications. Supporting GPS, GLONASS, Galileo, BeiDou and L-Band correction services, it delivers reliable multi-constellation GNSS signal tracking and centimeter-level positioning performance. Harxon patented D-QHA technology enables strong low-elevation satellite tracking, stable phase center performance and effective multipath rejection, while its compact and lightweight design makes it easy to integrate into UAVs, surveying and mapping equipment, and other space-constrained positioning systems.

Full-Band Multi-Constellation GNSS Support
Compact Φ30 × H34 mm Design, Only 10 g
U.FL Connector for Easy Integration
Precision-Tuned Design with Customization Options

Key Features

Advanced Patented D-QHA Technology

HX-CU7005A adopts Harxon patented D-QHA technology with wide-angle circular polarization (WACP), enabling exceptional low-elevation satellite tracking while maintaining high gain and reliable GNSS signal reception for stable positioning performance, even in challenging operating environments.
High Phase Center Stability and Consistent Performance

HX-CU7005A features multi-point feeding technology for high phase center stability and centimeter-level accuracy. High gain, ultralow signal loss, wide beamwidth and symmetric radiation patterns ensure reliable low-elevation satellite tracking and consistently accurate GNSS positioning performance.
Compact Design with Low Power Consumption

Weighing only 10 g and measuring just Φ30 × H34 mm, HX-CU7005A combines a compact, lightweight form factor with low power consumption for easy integration into UAV platforms, helping reduce payload, extend flight endurance and improve overall system reliability.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2/L5 GLONASS L1/L2 GALILEO E1/E5a/E5b BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°(Omni-directional)
Output VSWR	≤2.0
Gain RHCP (maximum)	1166-1278MHz 2.4dBi (@ Zenith) 1559-1612MHz 2.5dBi (@ Zenith) L-Band 1.0dBi (@ Zenith)

LNA Gain	33±2dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Out of Band Rejection	Upper Band:<1400mhz>30dB<1450mhz>33dB >1700MHz>30dB Lower Band:<1000mhz>41dB<1100mhz>40dB<1130mhz>28dB
Passband Ripple	±2dB
Operation Voltage	+3.3V to +12V DC
Operation Current	≤55mA
Differential Propagation Delay	≤5ns
