High Performance Helix Antenna with the Lowest Profile

Key Features

• Low Profile, Easy to be Integrated

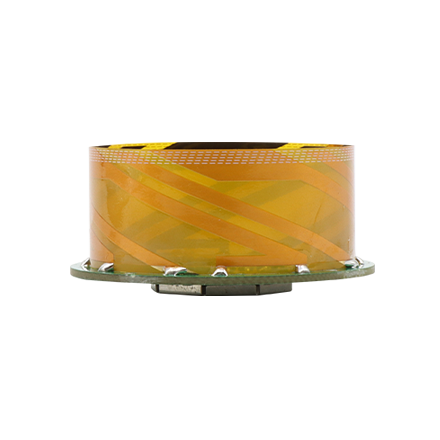

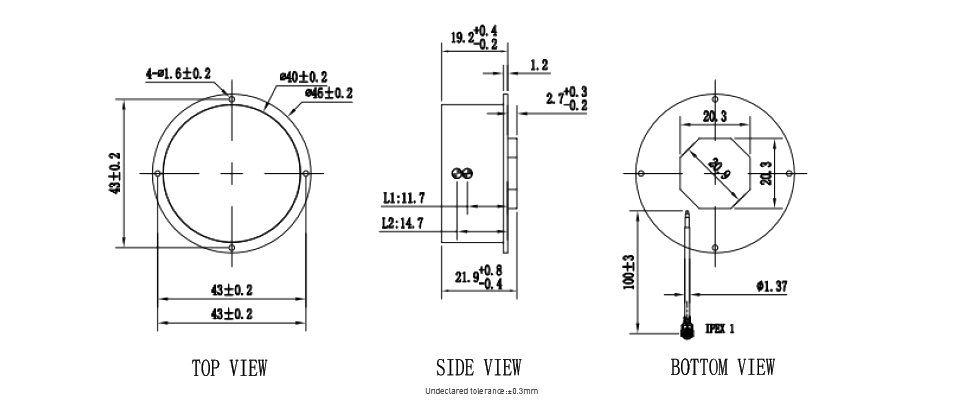

  HX-CUX012A is designed with extremely low profile (21.9mm) and weighs only 8g with a compact dimension of ¢46*21.9mm, making it ideal to be integrated into UAVs, surveying and monitoring devices. It meets the strict demands of low profile.

• High Phase Center Stability and Consistent Performance

  HX-CUX012A features a multi-point feeding technology that ensures a high phase center stability with centimeter level accuracy. It has a high peak gain of 3.3 dBi and excellent axial ratios, enabling excellent multipath mitigation and a very precise phase center.

• Strong Anti-interference Performance

  HX-CUX012A optimizes circuit layout and equips a robust pre-filtered LNA that features an excellent out-of-band interference rejection performance and restraints possible unwanted electromagnetic interference.

• Advanced Patented D-QHA Technology

  HX-CUX012A antenna adopts patented D-QHA technology for stable performance of wide-angle circular polarization (WACP), which ensures exceptional low elevation satellite tracking while maintaining high gain and providing reliable signal tracking.
