Embedded Full-Band (L1/L2/L5) Helix Antenna with L-band

Key Features

• Consistent Performance Across Full Frequency Bands

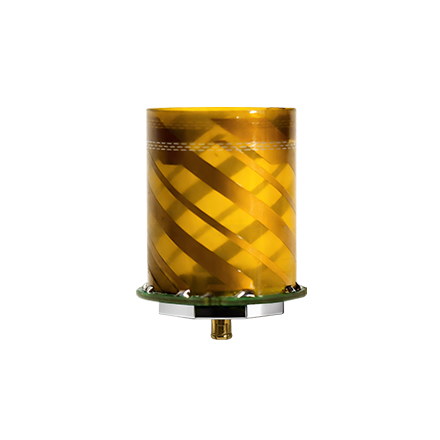

  HX-HE402A is an embedded helix antenna is designed for precision positioning, covering BDS, GPS, GLONASS, Galileo, QZSS, IRNSS, SBAS, and L-band corrections. It enables seamless integration and simplifies overall system design.

• Advanced Patented D-QHA Technology

  The antenna adopts patented D-QHA technology for stable performance of wide-angle circular polarization (WACP), which ensures exceptional low elevation satellite tracking while maintaining high gain and providing reliable signal tracking.

• Small Form Factor, Lightweight, Designed For Integration

  With a compact integrated design measuring just φ28.5*H37.6mm and weighing less than 15g, HX-HE402A combines both antenna and circuitry in a single lightweight unit, which minimizes payload on lightweight devices such as UAVs, enhancing endurance and portability.

• Strong Anti-Interference Performance in Harsh Environments

  HX-HE402A combines strong anti-interference capabilities with exceptional signal tracking performance. Its optimized circuit design and pre-filtered LNA offer outstanding out-of-band interference rejection, minimizing electromagnetic disruptions and ensuring reliable signal acquisition.
