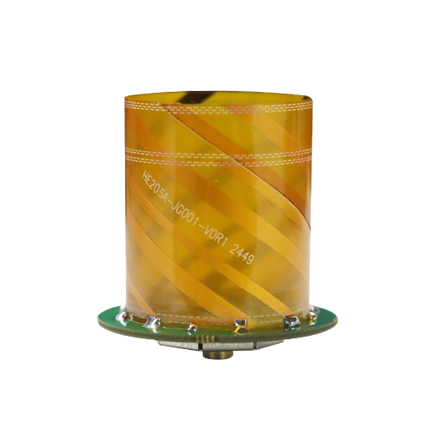

Embedded Dual-Band (L1/L2) Helix Antenna with L-band

Key Features

• Small Form Factor, Lightweight, Designed for Integration

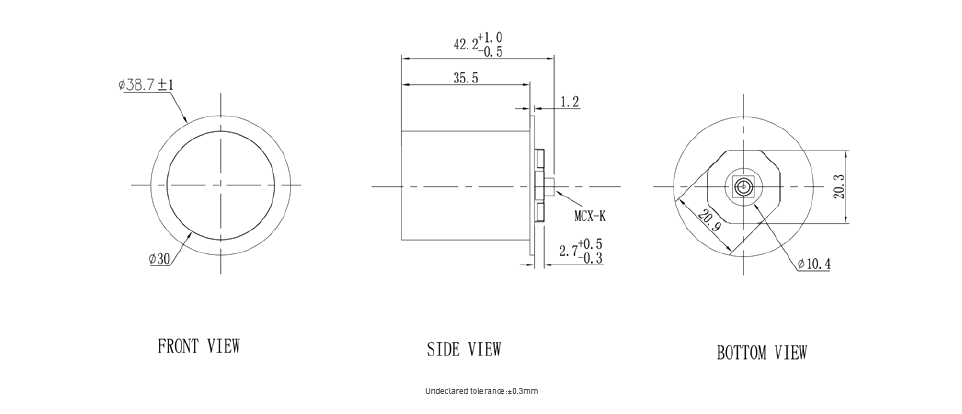

  With a compact integrated design measuring just φ38.7 × 39.4 mm, HX-HE205A combines both antenna and circuitry in a single lightweight unit, which minimizes payload on lightweight devices such as UAVs, enhancing endurance and portability.

• Advanced Patented D-QHA Technology

  HX-HE205A antenna adopts patented D-QHA technology for stable performance of wide-angle circular polarization (WACP), which ensures exceptional low elevation satellite tracking while maintaining high gain and providing reliable signal tracking.

• Strong Anti-interference Performance

  HX-HE205A optimizes circuit layout and equips a robust pre-filtered LNA that features an excellent out-of-band interference rejection performance and restraints possible unwanted electromagnetic interference.

• Tracking in Challenging Environments

  The antenna delivers high gain and a wide radiation beam, enabling excellent reception of low-elevation satellite signals. It effectively tracks visible satellites even in challenging environments—such as under tree canopies or near buildings—providing high-precision and reliable positioning data.
