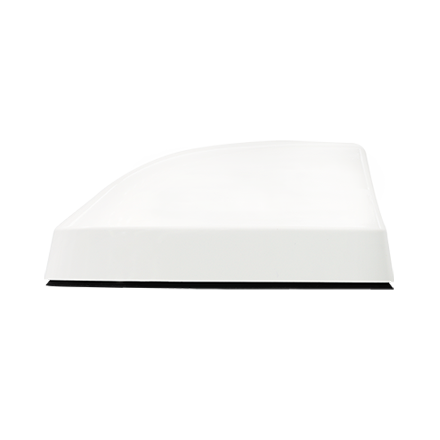

Automotive-grade Vehhicle Antenna HX-AUST002
Harxon HX-AUST002 is a highly integrated high performance multiband automotive antenna solution that provide swift, reliable connectivity to meet the increasing demands of seamless communication experience for Intelligent Transportation System (ITS) applications. It can provide the ability to connect vehicles as various types of unmanned passenger vehicles to networks, clouds, other vehicles, roadside infrastructure, and road users of ITS.
HX-AUST002 seamlessly integrates multi-constellation multi-band GNSS antenna, consistent V2X communication with uniform radiation element, plus embedding 4 units of 5G antennas.
HX-AUST002 employs Harxon patented modular structure layout to seamlessly integrate 7 units of broadband antennas into one compact enclosure with effective constrain of fusion noise.
The antenna adopts a pleasing low profile shark fin design to minimize the damage from the overhead objects and reduce wind resistance. It also has rugged and robust housing.
HX-AUST002 is open for flexible customizable requests as hardware connector, LNA and function expandable options as DSRC, C-V2X, UWB, AM/FM, WIFI dual-frequency.
| Frequency Rang | 1x GNSS Antenna L1/L2/ L5/B1/B2 /G1/G2 5G 1/2 Antenna 824-960M & 1710-2690M 3.3-3.6G & 4.8-5G 5G 3/4 Antenna 1710-2690M 3.3-3.6G & 4.8-5G 2x V2X 5.85-5.925G |
| Nominal Impedance | 50Ω |
| Polarization | GNSS RHCP 5G/V2X linear polarization |
| Azimuth Coverage | 360° |
| VSWR | GNSS ≤2.0 5G ≤4 V2X ≤2.0 |
| Gain/Efficiency (typical/average) | GNSS 3.5dBic 5G 1/2 824M-960M≥35% 1710M-2170M≥40% 2300M-2690M≥40% 3.3-3.6&4.8-5G≥35% 5G 3/4 1710M-2170M≥35% 2300M-2690M≥35% 3.3-3.6&4.8-5G≥35% V2X Average Gain -1.5dBi |
| GNSS Phase Center Variation | ≤2.5mm |
| Isolation | interelement≤-10dB intersystem≤-15dB |
| LNA Gain | 38±2dB |
| Noise Figure | ≤2dB |
| Output/Input VSWR | ≤2 |
| Passband Ripple | ±2dB |
| Operation Voltage | +3.3 to +12VDC |
| Operation Current | ≤100mA |
| Differential Propagation Delay | ≤5ns |
| V2X Vice LNA | customizable |
| V2X Vice LNA Operation Voltage | 3.3～12V |
| V2X Main LNA | customizable |
| V2X Main LNA Operation Voltage | 3.3～12V |
| Dimensions | L160*W80*H68mm (rubber mat/fixed frame not included) |
| Connector | FAKRA universal connector, customizable |
| Installation | screws fixed |
| Operating Temperature | -40℃ to +55℃ |
| Storage Temperature | -55℃ to +105℃ |
| Humidity | 95% Non-condensing |
Fleet Management
Commercial Vehicle
Passenger Vehicle
