Introduction

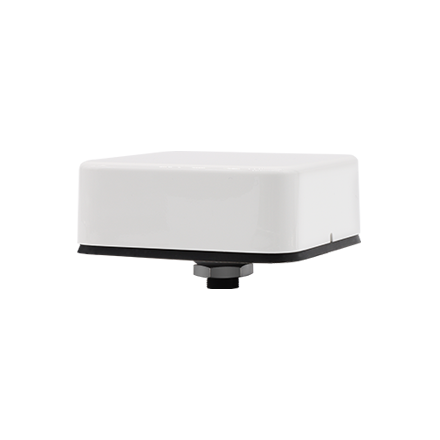

Harxon HX-AULT006 is an automotive-grade high-precision GNSS vehicle antenna designed for secure and reliable integration into vehicle-mounted positioning systems. Supporting GPS, GLONASS, Galileo, BeiDou and L-Band correction services, it combines stable phase center performance, 4.5 dBic typical gain, wide beam width and low-elevation satellite tracking for accurate positioning in demanding automotive environments. The compact, low-profile and IP65-rated housing withstands vibration, harsh weather and high-speed travel, while bottom cable routing, screw-fixed installation and a FAKRA-Z connector provide a secure mounting solution for autonomous vehicles, intelligent shuttles and other high-precision vehicle applications.

Screw Mount with FAKRA-Z Connector
Ruggedized Design with IP65 Protection
Stable High-Precision Positioning for Vehicle Applications
Full-Band Multi-Constellation GNSS Support

Key Features

Reliable and consistent Performance

Supporting GPS, GLONASS, Galileo, BeiDou and L-Band correction services, the antenna delivers stable phase center performance, 4.5 dBic typical gain and reliable low-elevation satellite tracking for accurate high-precision positioning across demanding automotive applications.
Strong Anti-Interference Capacity

A robust pre-filtered LNA provides excellent out-of-band interference rejection and improved signal filtering, helping maintain stable GNSS reception, reliable satellite tracking and consistent positioning performance across challenging automotive and vehicle operating environments.
Compact Form Factor and Ruggedized Housing

The compact, low-profile housing helps reduce wind resistance and minimize overhead damage, while ruggedized IP65 protection ensures reliable operation and long-lasting performance under vibration, harsh weather and high-speed vehicle travel conditions and environments.
FAKRA Connector, Easy For Integration

Bottom cable routing and a secure screw-fixed design provide stable vehicle installation, while the automotive-grade FAKRA-Z connector enables convenient integration into vehicle-mounted GNSS systems and supports flexible installation requirements across different automotive applications.

Parameters

Performance
LNA
Mechaical
Environmental

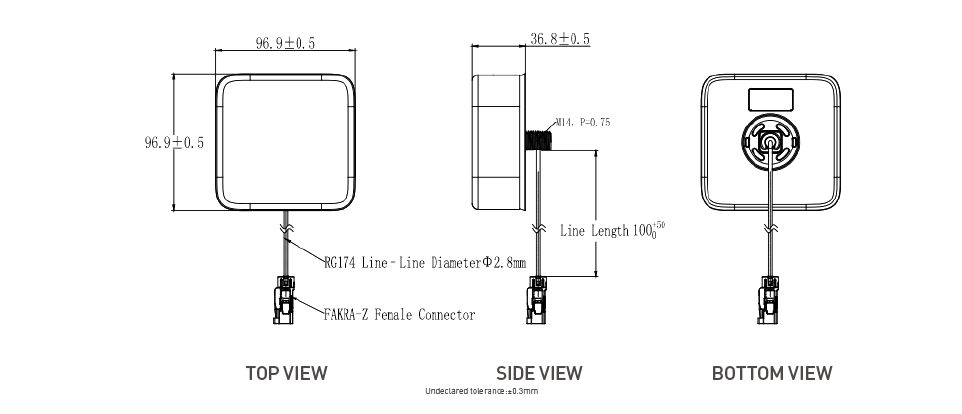

Drawing

Signal Received	GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 Beidou B11/B2I/B3I/B1C/B2a/B2b QZSS L1/L2/L5/L6 L-Band
Nominal Impedance	50Ω
Polarization	RHCP
Azimuth Coverage	360°
VSWR	≤2.0
Axial Ratio	≤2dB
Gain	4.5dBic (Typical value)
GNSS Phase Center	PCO X North≤3mm；Y East≤3mm

LNA Gain	40±2dB
Noise Figure	≤2dB
Out-band Rejection (±100MHz)	≥40dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤55mA
Differential Propagation Delay	≤5ns

Jumper - Connector	FAKRA-Z female connector, RG174 line (Irradiation), Exterior line length 20cm (Total length 25cm)（DL Line）
Overall Dimensions	W95.3L95.3H34.5mm
Internal Dimensions	W85L85H23mm
Installation	Line from the bottom, screws fixed
Cover Color	Specified white by Harxon
