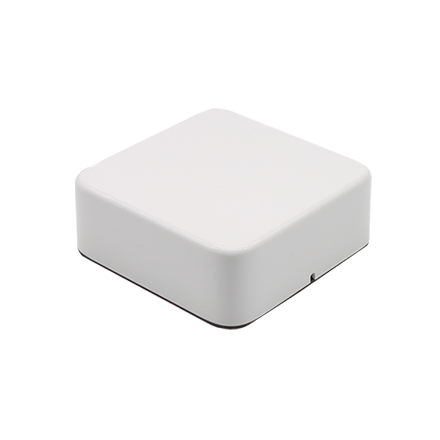

Automotive-grade Vehicle Antenna HX-AULT008
Harxon HX-AULT008 is a high-performance automotive-grade multiband antenna, designed and crafted for high-precision positioning while being robust and reliable. It offers superior satellite signal tracking, including GPS, GLONASS, Galileo, BeiDou, as well as L-Band correction service. It also has compact form factor and ruggedized housing.
HX-AULT008 offers comprehensive GNSS support and exhibits stable phase center variation, extraordinary 4.5dBic (typical value) gain with ultralow signal loss, wide beam width and low elevation satellite tracking ability.
HX-AULT008 is equipped with robust pre-filtered LNA which guarantees excellent out-of-band interference rejection performance and restrains unwanted electromagnetic interference.
This automotive-grade antenna is designed into low-profile and compact form factor to minimize damage from overhead objects and reduce wind resistance. Its ruggedized housing ensures long lifespan with IP65 protection.
HX-AULT008 adopts FAKRA Connector, which conforms to automotive-grade requirements and provides convenient connections. Also, it is open for flexible customizable requests.
| Signal Received | GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 L-Band |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Azimuth Coverage | 360° |
| VSWR | ≤2.0 |
| Axial Ratio | ≤2dB |
| Gain | 4.5dBic (Typical value) |
| GNSS Phase Center | PCO X North≤3mm；Y East≤3mm |
| LNA Gain | 40±2dB |
| Noise Figure | ≤2dB |
| Out-band Rejection (±100MHz) | ≥40dB |
| Output VSWR | ≤2.0 |
| Passband Ripple | ±2dB |
| Operation Voltage | +3.3 to +12VDC |
| Operation Current | ≤55mA |
| Differential Propagation Delay | ≤5ns |
| Jumper - Connector | FAKRA-Z female connector, RG174 line (Irradiation), Exterior line length 20cm (Total length 25cm)（DL Line） |

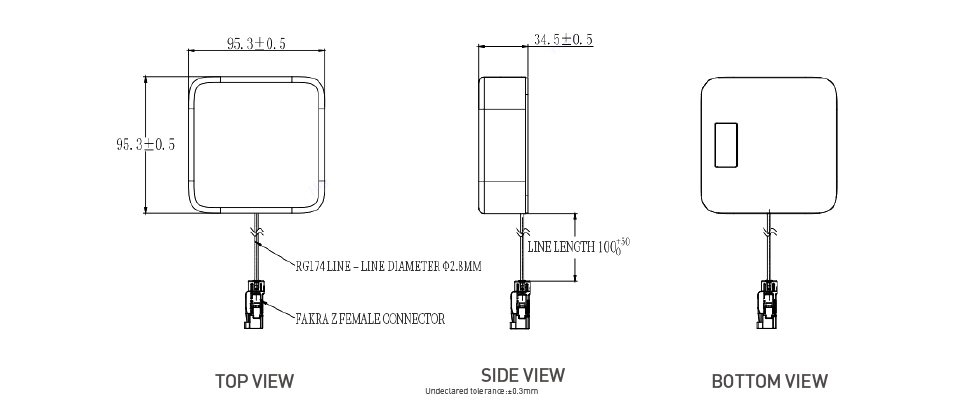

| Overall Dimensions | W95.3*L95.3*H34.5mm |
| Internal Dimensions | W85*L85*H23mm |
| Installation | Line from the side, glue fixed |
| Cover Color | Specified white by Harxon |
| Operating Temperature | -40℃ to +95℃ |
| Storage Temperature | -40℃ to +85℃ |
| Humidity | 95% Non-condensing |
| Water/Dust Resistance | IP65 |
Robot
Fleet Management
Commercial Vehicle
Passenger Vehicle
