Introduction

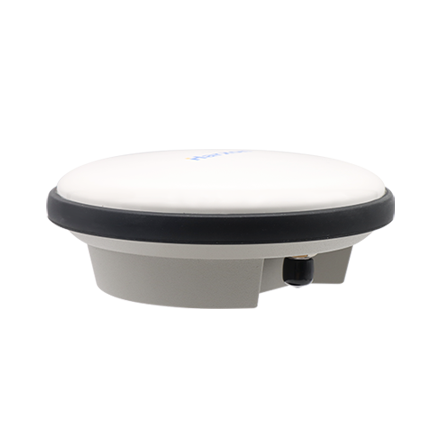

Harxon HX-CVX606A is a ruggedized full-band high-precision GNSS antenna designed for reliable positioning in demanding environments with high shock and vibration. Supporting GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS and L-Band correction services, it features stable phase center variation, excellent multipath rejection and strong low-elevation satellite tracking for consistent positioning performance. Its ruggedized enclosure with a solid metal base provides IP67 and IP69K protection and withstands harsh weather, shock and vibration. With flexible pole and screw mounting options, HX-CVX606A is well suited for surveying, construction machinery, autonomous vehicles and other high-precision GNSS applications operating under tough conditions.

Built for High Shock & Vibration Environment
Ruggedized Design with IP67 & IP69K Protection
Wide Applications: Construction, Agriculture, Marine & Robotics
Full-Band Multi-Constellation GNSS Support

Key Features

Ruggedized Enclosure for Tough Environments

HX-CVX606A features a ruggedized aerodynamic enclosure with a solid metal base, providing IP67 and IP69K protection against dust, rain and harsh outdoor conditions while withstanding high shock and continuous vibration for reliable operation in demanding environments.
Consistent Performance Across Full Frequency Bands

Supporting multiple GNSS constellations and L-Band correction services, the antenna combines stable phase center variation, advanced multipoint feeding, high gain, low signal loss and wide-angle circular polarization to deliver reliable full-band tracking and excellent positioning accuracy.
Tracking in Complex Environments

Featuring high gain, wide beamwidth and excellent low-elevation satellite tracking capability, HX-CVX606A maintains reliable and consistent GNSS signal reception even in challenging operating environments where surrounding obstacles and signal blockage can affect satellite visibility.
Strong Anti-interference Performance

The advanced LNA provides improved signal filtering and excellent out-of-band rejection, effectively suppressing unwanted electromagnetic interference and maintaining stable, reliable GNSS signal tracking in complex environments with strong electromagnetic interference.

Parameters

Performance
LNA
Mechaical
Environmental

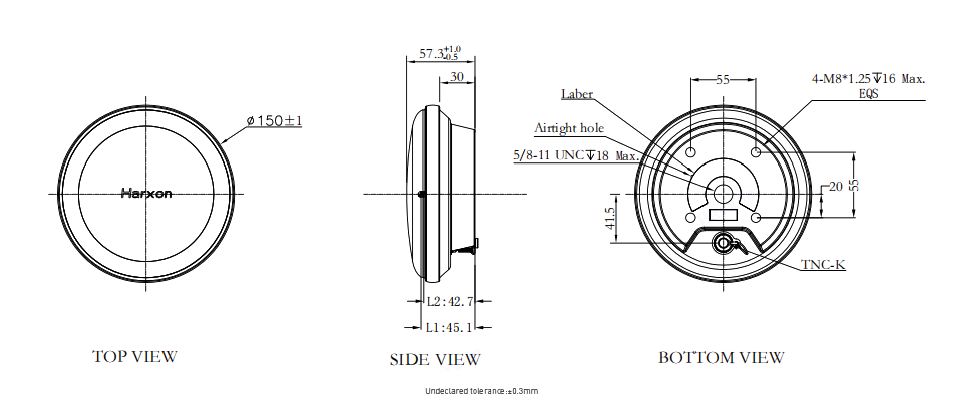

Drawing

Signal Received	Upper Band 1.525 to 1.615 GHz Lower Band 1.165 to 1.3GHz GHz GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°
Output VSWR	≤2.0
Peak Gain	5.5dBi

LNA Gain	40±2dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +18VDC
Operation Current	≤45mA
Group Delay Ripple	＜5ns

Dimensions	¢150×57.3mm
Connector	TNC-K
Weight	≤800g
Mounting	Pole Mount: Coarse threaded 5/8"-11, thread hole depth 14-18mm; Screws Mount: M8 screws

Operating Temperature	-50℃ to +85℃
Storage Temperature	-55℃ to +85℃
Humidity	95% Non-condensing
Ingress Protection Rating	IP67, IP69K
Salt Spray	96h
Vibration	9.8gRMS,24-2000Hz
Shock	3 vertical axis 75Gs, 6ms
EMC (RF Input Static)	Connected: 8KV, Air: 15KV, 10 times
Regulatory Compliance	E FCC ROHS
