Ruggedized High Precision GNSS Antenna HX-CVX600A

Introduction
Key Features
Parameters
Applications
Resources
Related Products
Inquiry
Blogs

Introduction

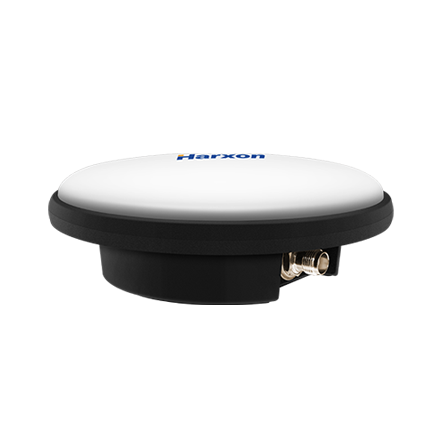

Harxon HX-CVX600A is a ruggedized full-band high-precision GNSS antenna designed for reliable positioning and robust signal tracking in demanding environments. Supporting GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS and L-Band correction services, it features ≤2 mm PCV repeatability, advanced multipoint feeding, excellent multipath rejection and low-elevation satellite tracking for consistent positioning performance. Its compact aerodynamic enclosure provides IP67 and IP69K protection and withstands high shock, vibration and harsh outdoor conditions. With pole and screw mounting options, HX-CVX600A is well suited for surveying, construction machinery and other high-precision GNSS applications requiring reliable operation in tough environments.

Built for High Shock & Vibration Environment
Wide Applications: Construction, Agriculture, Marine & Robotics
Ruggedized Design with IP67 & IP69K Protection
Full-Band Multi-Constellation GNSS Support

Key Features

Reliable and Durable with Millimeter Accuracy

HX-CVX600A combines a ruggedized enclosure with advanced filtering capabilities and robust signal tracking, providing millimeter-level accuracy and reliable high-precision GNSS positioning for professional surveying and construction applications in demanding outdoor environments.
Consistent Performance Across Full Frequency Bands

Supporting GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS and L-Band, the antenna features stable phase center variation, advanced multipoint feeding, high gain, ultralow signal loss and outstanding wide-angle circular polarization for excellent positioning accuracy.
Ruggedized Enclosure for Tough Environments

The compact antenna features a ruggedized IP69K-rated aerodynamic enclosure designed to withstand exposure to dust, rain, splash and sunlight. A standard TNC female connector with an anti-collision cap further enhances overall reliability in challenging outdoor environments.
Strong Anti-interference Performance

HX-CVX600A uses a robust pre-filtered LNA to minimize de-sensing caused by high-level out-of-band signals and effectively suppress unwanted electromagnetic interference, providing strong interference rejection and helping maintain consistent, reliable GNSS signal tracking performance.

Parameters

Performance
LNA
Mechaical
Environmental

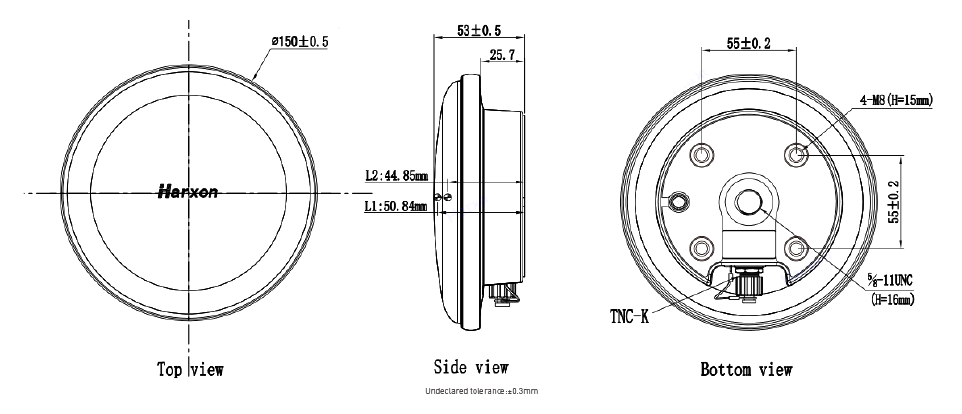

Drawing

Signal Received	Upper Band 1.525 to 1.615 GHz Lower Band 1.164 to 1.3GHz GHz GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°(omni-directional)
Output VSWR	≤2.0
Peak Gain	5.5dBi

LNA Gain	40±2dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +18VDC
Operation Current	≤45mA
Group Delay Ripple	＜5ns

Dimensions	¢150×53mm
Connector	TNC Female
Weight	≤650g
Mounting	Pole Mount: Coarse threaded 5/8"-11, thread hole depth 10-11mm Screws Mount: 4x M8 screws depth

Operating Temperature	-40℃ to +85℃
Storage Temperature	-55℃ to +85℃
Humidity	95% Non-condensing
Ingress Protection Rating	IP67, IP69K
Vibration	9.8gRMS,24-2000Hz
Shock	75Gs, 6ms duration, 3 shocks in mutually perpendicular axes
Salt Fog	96h (continuous spray, 5% concentration, 35°C)
