High Performance Antenna for Autonomous Applications

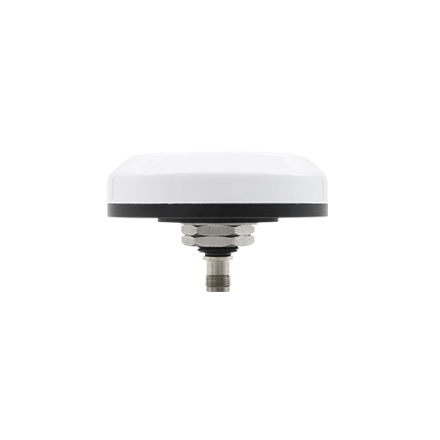

Ruggedized Antenna HX-CVX603A

Introduction

The Harxon HX-CVX603A is a high-performance GNSS antenna engineered with a rugged, durable housing for exceptional reliability and seamless integration into applications requiring ultimate positioning accuracy. Designed for demanding industrial and field environments, the HX-CVX603A delivers stable, consistent, and highly reliable satellite signal tracking across all major constellations, including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS, while also supporting L-Band correction services for enhanced accuracy. With superior phase-center stability, advanced interference resistance, and dependable multi-frequency performance, this antenna is ideal for surveying, precision agriculture, machine control, intelligent construction, UAV systems, and other high-precision GNSS applications.

Key Features

  • Reliable Phase Center

    HX-CVX603A features high gain, wide beam width as well as outstanding wide-angle circular polarization (WACP) performance. It exhibits a very stable phase center by adopting multipoint feeding technology.

  • Tracking in Complex Environments

    The high gain and wide beam width features ensure exceptional low elevation signal tracking performance, which make sure the antenna receives reliable and consistent signals.

  • Strong Anti-interference Performance

    The advanced LNA of the antenna excels in improved signal filtering and out-of-band rejection by restraining unwanted electromagnetic interferences and providing strong anti-interference performance.

Parameters

HX-CVX603A
Signal Received GPS L1/L2/L5
GLONASS L1/L2/L3
GALILEO E1/E5a/E5b/E6
BDS B1/B2/B3
QZSS L1/L2/L3/L6
IRNSS L5
SBAS L1/L5
L-Band
Nominal Impedance 50Ω
Polarization RHCP
Axial Ratio ≤3dB
Azimuth Coverage

360°(omni-directional)

Output VSWR ≤2.0
Peak Gain 4.0dBi
LNA Gain 40±2dB
Noise Figure ≤2dB
Output VSWR ≤2.0
Passband Ripple ±2dB
Operation Voltage +3.3~+16VDC
Operation Current ≤45mA
Differential Propagation Delay <5ns
EMC(RF Input Static) Connected 8KV, Air 15KV, 10times
Dimensions Φ90.6×26mm
Connector TNC Female
Weight ≤250g
Water/Dust Resistance IP67
Mounting Screws Mount: M18 screws
Operating Temperature -40℃ to +85℃
Storage Temperature -55℃ to +85℃
Humidity 95% Non-condensing



Applications

marine 1

Marine

agriculture 1

Agriculture

robot 1

Robot

bulldozer

Bulldozer

pile-driver

Pile Driver

excavator

Excavator

paver

Paver

road-roller

Road Roller
