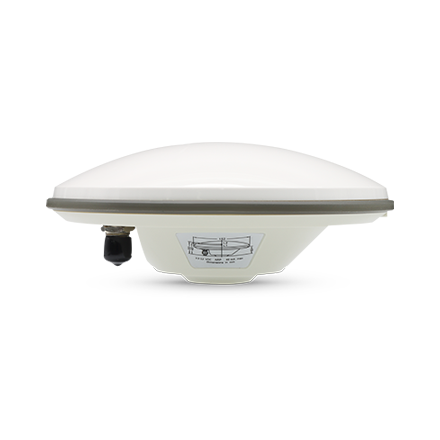

Survey GNSS Antenna GPS600 (Discontinued)
GPS600 is a high performance survey GNSS antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS and GALILEO. It meets the requirements of high precision and multi-constellation compatibility. And it can be used with a variety of receivers, suitable for various occasions.
GPS600 features a multi-point feeding deign to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solutions.
The ability to receive low elevation signals with high gain and wide beam width makes GPS600 an excellent choice for tracking visible satellites under challenging conditions.
The antenna LNA features excellent out-of-band rejection performance, which can suppress the electro magnetic interference, providing the stability and reliability of GNSS signals.
The compact and lightweight design makes GPS600 highly portable and suitable for outdoor operating in precision applications. Its IP67 protection keeps GPS600 from dust and water for quite a long time.
| Signal Received | GPS L1,L2 GLONASS L1,L2 GALILEO E1 BDS B1,B2,B3 QZSS L1,L2 SBAS L1 |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Gain at Zenith (90°) | 1164-1300MHz 5.5dBi(maximum) 1520-1615MHz 5.5dBi(maximum) |
| LNA Gain | 40dB(typical) |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | +3.3 to +12VDC |
| Operation Current | 45mA(maximum) |
| Group Delay Ripple | ＜5ns |
| Dimensions | ¢152*62.2mm |
| Connector | TNC female |
| Weight | ≤500g |
| Mounting | BSW5/8''-11 screw, 12-14mm |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +85℃ |
| Humidity | 95% Non-condensing |
| Water/Dust Resistance | IP67 |
| Regulatory Compliance | NGS, CE, FCC, RoHS |
Survey Rover Station
Survey Base Station
Agriculture
Mobile Mapping
