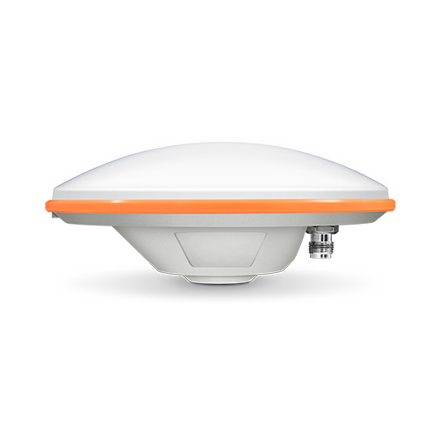

Survey GNSS Antenna HX-CSX627A
HX-CSX627A is a high-performance survey-grade GNSS antenna designed to deliver exceptional satellite signal tracking and stable high-precision positioning. Supporting full multi-constellation systems—including BeiDou, GPS, GLONASS, and GALILEO—HX-CSX627A ensures greater availability, improved accuracy, and stronger reliability in complex environments.
HX-CSX627A features a multi-point feeding deign to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solutions.
The ability to receive low elevation signals with high gain and wide beam width makes HX-CSX627A an excellent choice for tracking visible satellites under challenging conditions.
The antenna LNA features excellent out-of-band rejection performance, which can suppress the electro magnetic interference, providing the stability and reliability of GNSS signals.
The compact and lightweight design makes HX-CSX627A highly portable and suitable for outdoor operating in precision applications. Its IP67 protection keeps HX-CSX627A from dust and water for quite a long time.
| Signal Received | GPS L1/L2/L5/L-Band GLONASS L1/L2/L3 BDS B1/B2/B3 GALILEO E1/E6/E5a/E5b QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Gain at Zenith (90°) | 5.5dBi |
| LNA Gain |
L1: 38±2dB L2: 40±2dB |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | +3.3 to +12VDC |
| Operation Current | ≤45mA |
| Group Delay Ripple | ≤5ns |
| Dimensions | ¢152*62.2mm |
| Connector | TNC female |
| Weight | ≤400g |
| Mounting | BSW5/8''-11 screw, 12-14mm |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +85℃ |
| Humidity | 95% Non-condensing |
Survey Rover Station
Survey Base Station
Agriculture
Mobile Mapping
