Introduction

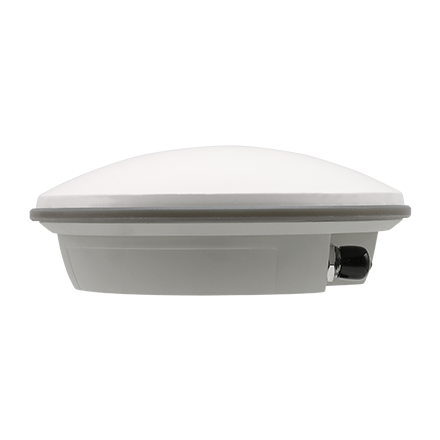

The Harxon HX-CSX633A is a high-performance survey GNSS antenna designed for high-precision positioning and multi-constellation tracking, supporting BeiDou, GPS, GLONASS, and Galileo. Its advanced RF performance ensures stable signal reception, excellent tracking accuracy, and reliable positioning results. With flexible installation options including magnetic mount, screw mount, and pole mount, the HX-CSX633A enables easy deployment across a wide range of surveying, RTK GNSS, reference station, and precision positioning applications.

Key Features

Ruggedized Housing, Easy to Install

HX-CSX633A is designed with brand new structure, enabling easy and flexible installations (magnetic mount, screws mount and pole mount) for many high-precision applications.
High Phase Center Stability

HX-CSX633A features a multi-point feeding deign to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solutions.
Tracking in Challenging Environments

The ability to receive low elevation signals with high gain and wide beam width makes HX-CSX633A an excellent choice for tracking visible satellites under challenging conditions.
Strong Anti-interference Performance

The antenna LNA features an excellent out-of-band rejection performance, which can suppress the electromagnetic interference, providing the stability and reliability of GNSS signals.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2/L5 BDS B1I/B2I/B3I/B1C/B2a/B2b GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°
Output VSWR	≤2.0
Gain at Zenith	5.5dBi
Phase Center Error	±2mm

LNA Gain	L2: 40±2dB L1: 38±2dB
Noise Figure	≤2dB
Output VSWR	≤2.0
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤45mA
Group Delay Ripple	≤5ns

Dimensions	Φ152*57.7mm
Connector	TNC-K
Weight	≤700g
Mounting	Magnetic mount 3 x M5 screws mount BSW5/8''-11 screw, 12-14mm

Operating Temperature	-40℃ to +85℃
Storage Temperature	-55℃ to +85℃
Shock	MIL-STD-810-F to survive a 2m (6.56 ft) drop onto concrete
Vibration	MIL-STD-810-F on each axis
EMC (RF Input Static)	Connected: 8KV, Air: 15KV, 10 times
Humidity	95% Non-condensing
Water/Dust Resistance	IP67
Regulatory Compliance	CE, FCC, RoHS
