Introduction

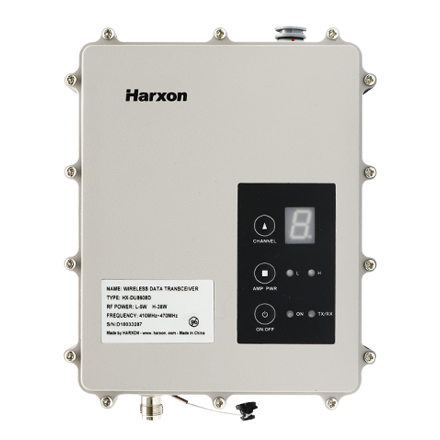

The Harxon HX-DU8608D is a high-speed, high-power wireless data link engineered to withstand the rigors of GNSS/RTK surveying and high-precision positioning applications. With 35W high transmission power, this radio maximizes communication range, enabling stable and reliable data links even in challenging urban environments with signal obstructions and interference.

Designed for professional field operations, the HX-DU8608D is equipped with a digital display, LED indicators, and an integrated keypad, allowing users to clearly monitor operating status and easily adjust radio channels and transmission power levels on site.

Combining long-range communication capability, robust performance, and user-friendly operation, the HX-DU8608D delivers a durable and dependable wireless data link solution for RTK correction transmission, base-to-rover communication, large-scale surveying, construction positioning, and other mission-critical geomatics applications.

Compatible Mainstream Communication Protocols
Support High/ Low Power Switch
IP67 Rugged Protection
Support Air Baud Rate Switching
Support Serial Port Baud Rate Switching

Key Features

Wide Frequency Coverage and Flexible Channel Bandwidth

Covering the 410–470 MHz frequency range, the radio features an advanced data link design for consistent communication performance across the entire 60 MHz band. Software-configurable channel bandwidth supports both 12.5 kHz and 25 kHz operation, providing flexibility when matching channel settings with compatible radios in existing GNSS/RTK communication systems.
Multi-function Interface for Convenient Field Operation

Designed for easy mobile use in demanding field conditions, the radio features a multi-function user interface that simplifies operation and configuration. Convenient access to radio settings helps users prepare equipment for deployment and adjust operating parameters as field requirements change, supporting efficient workflows for surveying and other outdoor positioning applications.
Configurable Transmit Power for Different Operating Needs

Selectable transmit power levels of 5W, 10W, 15W, 20W, 30W, and 35W allow users to adapt the radio to different communication requirements. This flexibility helps balance transmission needs and power consumption, enabling users to select an appropriate output level based on site conditions, deployment distance, and available power.
Repeater Function for Flexible Communication Coverage

The radio supports repeater operation on the same frequency or on different frequencies, offering flexible options for relaying data between field devices. When deployed as part of a suitable radio network, the repeater function can help extend correction data coverage and reach areas where a direct radio link is limited by distance or terrain.

Parameters

Performance
Connectivity
Mechaical
Environmental

Radio
Frequencies(selectable)	410MHz~470MHz
Operating Mode	Half-duplex
Channel Spacing	25KHz/12.5KHz
Modulation type	GMSK
Operating Voltage	12V
Power Dissipation (Typical)	High power level（35W）: ≤110W @ DC 12V High power level（30W）: ≤100W @ DC 12V High power level（20W）: ≤75W @ DC 12V Low power level (15W): ≤60W @ DC 12V Low power level (10W): ≤45W @ DC 12V Low power level (5W): ≤25W @ DC 12V Standby: ≤1.5W @ DC 12V
Frequency Stability	≤±1.0ppm

Transmitter

RF output power:

High level（35W）: 45.5±0.5dBm@D C12V
High level（30W）: 44.8±0.5dBm@D C12V
High level（20W）: 43±1dBm@DC12 V
Low level（15W）: 41.8±1dBm@DC 12V
Low level（10W）: 40±1dBm@DC12 V
Low level（5W）: 37.5±1dBm@DC 12V

Power stability: ±1dB

Harmonics: >50dB

Receiver

Sensitivity: -114dBm@BER 10-3，9600bps

Co-channel rejection: >-12dB

Adjacent channel selectivity: >50dB@25KHz

Modem

Air Baud Rate:

9600bps / 19200bps

Modulation type: GMSK

Serial Port Baud:

9600 bps/ 19200 bps/ 38400 bps/ 57600 bps/ 115200 bps
