Introduction

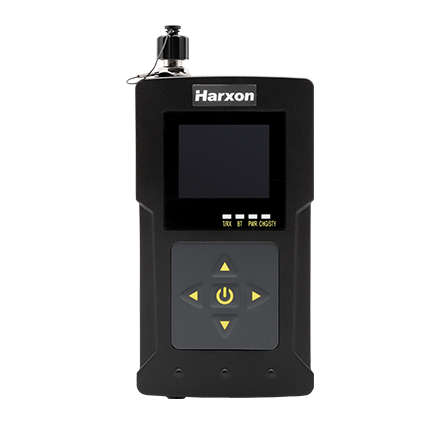

Harxon HX-DU1603D SE is an UHF external radio designed for easy mobile use in demanding field conditions for wireless data communication between 410 and 470MHz with channel spacing selectable to be in 12.5 or 25 kHz. This lightweight transceiver is equipped with an OLED display, menu operation enabled and low power consumption, interference detection, remote control, great receiving performance.

Key Features

Compatible with Mainstream Radio Protocols

HX-DU1603D SE is compatible with mainstream radio protocols on the market, including Trans EOT, TrimTalk450S, TrimMark3, SATEL, and other industrial manufacturer’s radio protocols
Support Multi-mode Data Transmit

HX-DU1603D SE supports RS232 serial port and Bluetooth wireless technology for data transmission. It can be integrated into outdoor base station as external radio and provide convenience for surveyors
OLED Display for Radio Operation Configuration

HX-DU1603D SE enables users to easily set up radio parameters or inquire radio status via local display. Users could set and switch serial port baud rate and channels without reaching a computer or other terminals
Versatile Features with Reliable Performance

This small, lightweight radio provides reliable operation with sophisticated features as compact single board structure, high/low power switching, serial port baud rate switching, air baud rate switching, starting-up status identification, interference detection and remote control

Parameters

Performance
Connectivity
Mechaical
Environmental
Drawing

Frequencies(selectable)	410MHz~470MHz
Operating Mode	Half-duplex
Channel Spacing	25KHz/12.5KHz
Channels	Up to 36 programmable channels (user selectable)
Operating Voltage	9V~36V
Power Dissipation (Typical)	High power 7.5W@12V DC Low Power 4.0W@12V DC Standby 1.2W@12V DC
Frequency Stability	≤±1.0ppm
