Dual Band Passive GNSS Antenna
SPATL1364BL5366_J7013

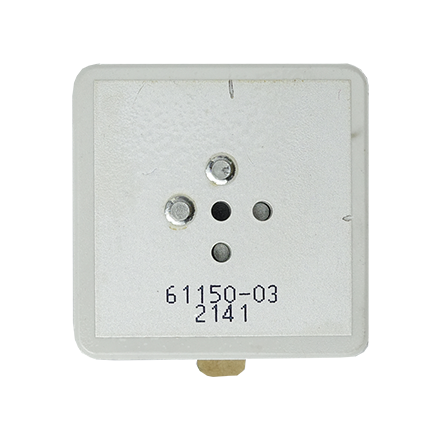

SPATL1364BL5366_J7013 is a dual-feed multi-frequency passive GNSS ceramic patch antenna designed for reliable high-band and low-band satellite signal reception. Covering GPS L1/L5, GLONASS G1, Galileo E1/E5a, BeiDou B1I/B1C/B2a, QZSS L1/L5 and IRNSS L5 bands, it features a compact stacked structure, RHCP polarization, low reflection loss, stable phase center and high gain performance for navigation, IoT, M2M, tracking, surveying and positioning applications.
SPATL1364BL5366_J7013 supports GPS L1/L5, GLONASS G1, Galileo E1/E5a, BeiDou B1I/B1C/B2a, QZSS L1/L5 and IRNSS L5, enabling reliable multi-frequency GNSS signal reception for positioning and navigation applications
The antenna adopts a compact stacked ceramic patch structure with upper and lower four-feed-point designs, helping achieve low reflection loss, a low axial ratio and improved phase center stability
With RHCP polarization, 50 Ω impedance, high-band frequency coverage of 1559–1606 MHz and low-band coverage of 1164–1189 MHz, the antenna delivers stable passive GNSS reception without requiring external power
Built with high-Q dielectric ceramic material, a silver-plated electrode and ground base, copper tin-plated pins and an adhesive mounting design, the antenna is suitable for integration into GNSS receivers, modules, IoT terminals and positioning devices
| Frequency | GPS L1/L5; GLONASS G1; Galileo E1/E5a; BeiDou B1I/B1C/B2a; QZSS L1/L5; IRNSS L5 |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Peak Gain |
High Band: 2.59 dBic @ BDS B1; 3.68 dBic @ GPS L1; 3.68 dBic @ Galileo E1; 3.59 dBic @ GLONASS G1; Low Band: -1.29 dBic @ GPS L5 / Galileo E5a / BDS B2a |

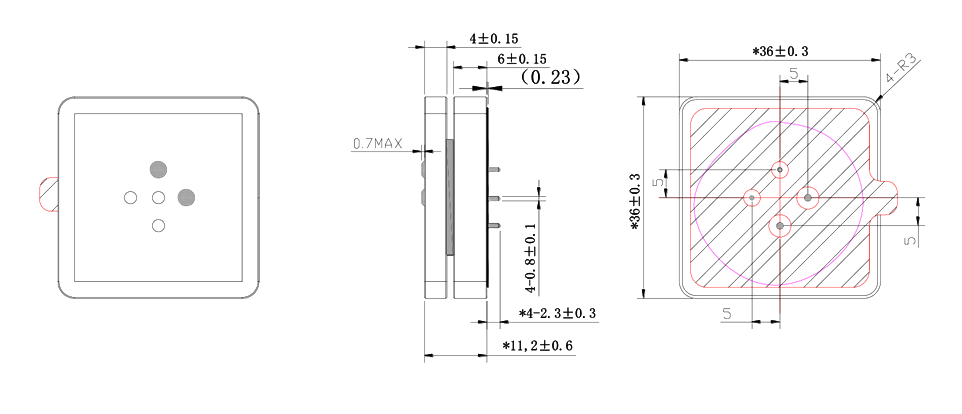

| Dimensions | 36*36*6mm+36*36*4mm |
| Weight | 47.58 g |
| Antenna Structure |
|
| Mounting | Adhesive mounting / PCB integration |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +110℃ |
| Vibration | 10–55 Hz, amplitude 1.5 mm, 2 hours each in X/Y/Z directions |
