Choke Ring Antenna HX-CGX606A

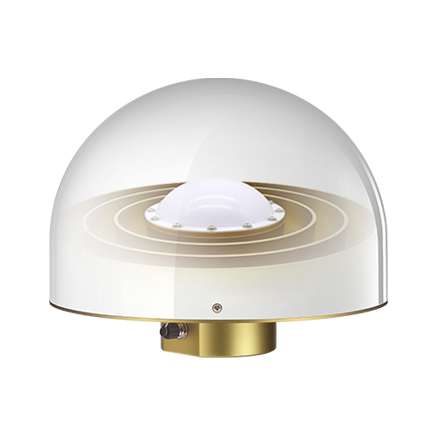

Harxon HX-CGX606A is a high performance GNSS antenna for base station that covers comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou as well as L-Band correction service. It is a 2D choke ring antenna with strong multipath suppression performance, specifically designed for applications require absolute positioning accuracy and multi-constellation support.
The unique 2D choke ring design of HX-CGX606A ensures an excellent multipath reduction performance. And the antenna features the Harxon patented multi-point feeding technology to achieve greater phase center stability.
The strong ability to receive low elevation signals with high gain and wide beam width makes HX-CGX606A an excellent choice for tracking visible satellites and provide stable and precision GNSS data.
The antenna LNA features an excellent out-of-band rejection performance, which can suppress the EMI, providing the stability and reliability of GNSS signals.
The IP67 ruggedized cover is made of Glass Fiber Reinforced Polymer(GFRP) material. The newly designed choke rings are treated with a more robust double treatment for longer lasting durability in harsh environments.
| Signal Received | GPS L1/L2/L5/L-Band GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤2dB |
| Gain at Zenith (90°) | 1205-1278MHz 6dBi(maximum) 1559-1615MHz 6dBi(maximum) |
| LNA Gain | 50dB(typical) |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | +3.3 to +12VDC |
| Operation Current | 60mA(maximum) |
| Group Delay Ripple | ≤5ns |
| Dimensions | ¢322*261mm |
| Connector | TNC Female |
| Weight | ≤5.6kg |
| Mounting | BSW5/8''-11 screw, depth≥22mm |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +85℃ |
| Humidity | 95% Non-condensing |
| Regulatory Compliance | NGS, CE, FCC, ROHS |
| Water/Dust Resistance | IP67 |
