Overview

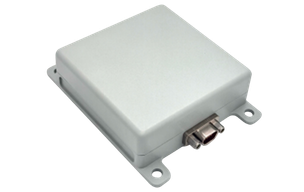

JM008 is an ultra-compact anti-jamming integrated antenna that combines an anti-jamming module, a four-element antenna array, and a receiver into one unit. It is capable of suppressing various types of broadband and narrowband interference, which supports GPS L1, BDS B1. With its outstanding interference suppression performance, it is widely suitable for integrated applications in complex electromagnetic environments such as marine vessels, unmanned aerial systems.

Key Features

Chip-Based and Highly Integrated Design

JM008 adopts a highly integrated dual-chip architecture consisting of a 4-channel anti-jamming RF chip and an anti-jamming baseband processing chip. This design significantly improves overall system reliability, while also enabling a highly integrated all-in-one solution.

Integrated Multi-Element Anti-Jamming Antenna

JM008 delivers outstanding anti-jamming performance for demanding operational environments. It supports GPS L1 and BDS B1 signal reception, and effectively suppresses a wide range of broadband and narrowband jamming signals, including harmonic, sweep, pulse, FM, and PM interference.

Superior Anti-Jamming Capabilities

JM008 can effectively suppress interference signals from three signal sources. For single interference source, the suppression capability is no less than 90dB; for three interference sources, the suppression capability is no less than 80dB.

Compact, Low-Power and Lightweight Design

JM008 features a highly integrated dual-chip architecture and all-in-one design that significantly reduces overall size, power consumption, and weight. It features a compact form factor of just 65*65*22 mm, total power consumption of less than 9 W, and a weight of under 130 g.

Parameters

ANTENNA PERFORMANCE

Antenna Elements

4-Element B1L1 Anti-Jamming Antenna Array
Embedded Receiver

Dynamic Performance

Low dynamics: velocity≤515 m/s, acceleration≤4g
Medium dynamics: velocity≤1500m/s, acceleration≤30g*
*Supported only in specific firmware versions.

Positioning Accuracy

Horizontal≤4m (95%)
Vertical≤6m (95%)

Velocity Accuracy

Horizontal≤0.15m/s (95%)
Vertical≤0.15m/s (95%)

Timing Accuracy

≤ 50 ns (95%)

Time to First Fix

Cold start≤40s
Hot start ≤5s
Reacquisition ≤3s (signal interruption time<30s)

Sensitivity

Acquisition≤-141dBm
Tracking≤-155dBm

Data

Data Protocols: Binary Protocol, NMEA 0183
Data Update Rate: 1/2/5/10/20Hz

Interfaces

configurable LVTTL serial ports
Maximum baud rate: 460800 bps
LVTTL 1PPS output

SYSTEM PERFORMANCE

Operation Voltage

DC 9-36V

Power Consumption

≤9W

Number of Jamming Sources

Signal-to-Interference Ratio

Interference Rejection (1 simultaneous sources) ≥ 90 dB
Interference Rejection (3 simultaneous sources) ≥ 80 dB

MECHANICAL

Color

Grey-White

Dimensions

65*65*22mm
(Excluding mounting structure, connectors, accessories, and tolerances)

Weight

≤130g

Mounting

4*M4 Screws Mount

Power Supply/Data: J30J-9ZKP

ENVIRONMENTAL

Operating Temperature

-40°~+70°

Storage Temperature

-45°~+70°

Waterproof Rating

IP65

Quality Level

Industrial Grade

Product Certification

RoHS
