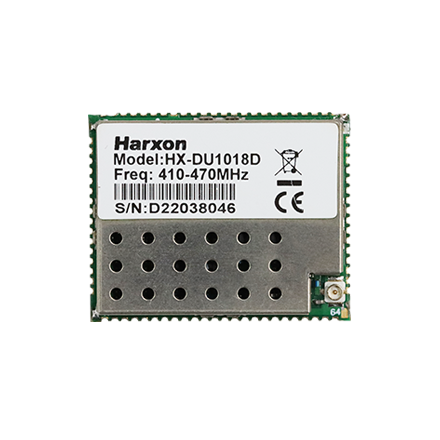

Radio Modem HX-DU1018D
HX-DU1018D is a 0.5W and 1W radio modem, with light weight, small size and stable high performance. It can offer a frequency range between 410-470MHz. Also the frequency band can be customized as special requirement. It is flexible for the users to set the UART baud rate, output power, data rate, modulation mode select etc. parameters. It is your ideal choice for designing wireless data transmission products.
HX-DU1018D provides reliable data communications for mission-critical applications where a combination of stability, supreme performance and long range are required
HX-DU1018D weights only 5g with small dimension, and it could be easily integrated into customer’s host device, perfect for innumerable mobile and remote data applications
HX-DU1018D adopts optimized structure design for upgraded transmission efficiency while reducing power consumption, prolongs the battery life
| Frequencies(selectable) |
410-470MHz |
|
Operating Mode |
Half-Duplex |
| Channel Spacing | 12.5KHz~25KHz |
| Forward Error Correction | Hamming |
| Operation Voltage |
3.3V |
| Power Dissipation (Typical) | Transmit Of High power: 4.0W@3.3V DC Transmit Of Low power: 2.5W@3.3V DC Receiving: 0.5W@3.3V DC |
|
Frequency Stability |
≤±1.0ppm |
| Transmitter |
RF Output Power: High Level(1W): 30.5±0.5dBm@ 3.3VDC
Power Stability: ±1dB
Harmonics: >50dB |
| Receiver |
Sensitivity: -117dBm@BER 10-3,9600bps
Adjacent Channel Selectivity: >50dB@25KHz |
| Modem |
Data Link Rate: 4.8 kbps、9.6kbps、19.2kbps
Modulation Type: GMSK
Serial Port Baud Rate: 9600 bps、19200 bps、38400 bps、 57600 bps、115200 bps |
| Dimensions |
33×26.5×3.5mm
|
| Weight | 5g |
| Data Interface | 80Pin SMT |
| Antenna Interface | IPEX |
| Operating Temperature | -40℃ to +70℃ |
| Storage Temperature | -40°C to +85°C |
Survey Base Station
Survey
Agriculture
Agricultural Robot
